STMicroelectronics STM32L4A6QGI6
Prix habituel
$13.23
Prix habituel
$9.45
Prix promotionnel
$13.23
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.23 | $13.23 |
| 15+ | $8.69 | $130.35 |
| 25+ | $8.51 | $212.75 |
| 50+ | $8.03 | $401.50 |
| 100+ | $7.09 | $709.00 |
| N+ | $1.42 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | STMicroelectronics |
| Gamme de produits | STM32L4 |
| Conditionnement | Plateau | |
| Processeur central | ARM® Cortex®-M4 |
| Taille du noyau | 32 bits monocœur |
| Vitesse | 80 MHz |
| Connectivité | CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB OTG |
| Périphériques | Détection/réinitialisation des baisses de tension, DMA, LCD, PWM, WDT, (alimentation externe requise) |
| Nombre d'E/S | 110 |
| Taille de la mémoire du programme | 1 Mo (1 Mo x 8) |
| Type de mémoire de programme | ÉCLAIR |
| Taille de l'EEPROM | - |
| Taille de la RAM | 320K x 8 |
| Tension d'alimentation (Vcc/Vdd) | 1,71 V ~ 3,6 V |
| Convertisseurs de données | A/D 19x12b ; D/A 2x12b |
| Type d'oscillateur | Interne |
| Température de fonctionnement | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Type de montage | Montage en surface |

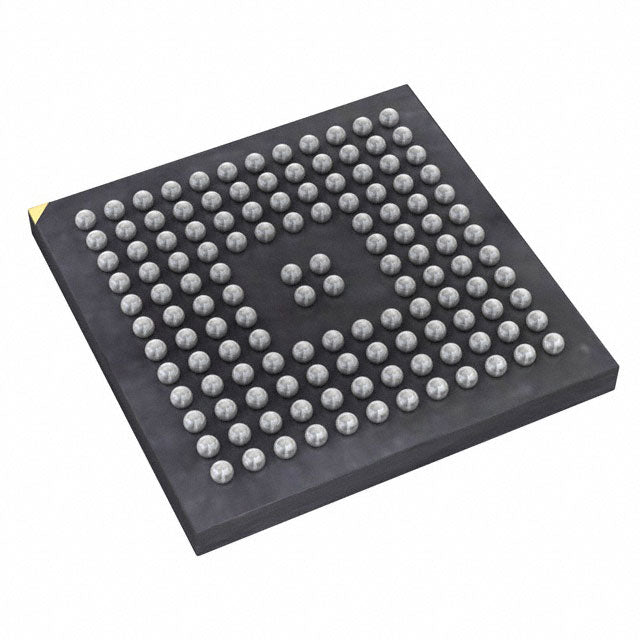

| Emballage du dispositif du fournisseur | 132-UFBGA (7x7) |
| Emballage / Étui | 132-UFBGA |
| RoHS |  |
Base Product Number ：
STM32L4A6QG
STM32L4A6QGI6.pdf
- Q: What is the core processor of the STM32L4A6QGI6?
- A: It is based on the ARM Cortex-M4 core with FPU, running at up to 80MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V, supporting low-power and battery applications.
- Q: How much flash and RAM does it have?
- A: It includes 1MB of flash and 320KB of RAM, ideal for memory-intensive applications.
- Q: What package is available?
- A: It comes in a 132-UFBGA package, suitable for compact, high-density designs.
- Q: Does it support LCD and external SMPS?
- A: Yes, it has an LCD controller and requires an external SMPS for optimal power efficiency.
×
