Texas Instruments TLC1542CDW

  • TLC1542CDW Texas Instruments Texas Instruments Circuit intégré ADC 10 bits SAR 20SOIC Original Authentic IC Component
1 1

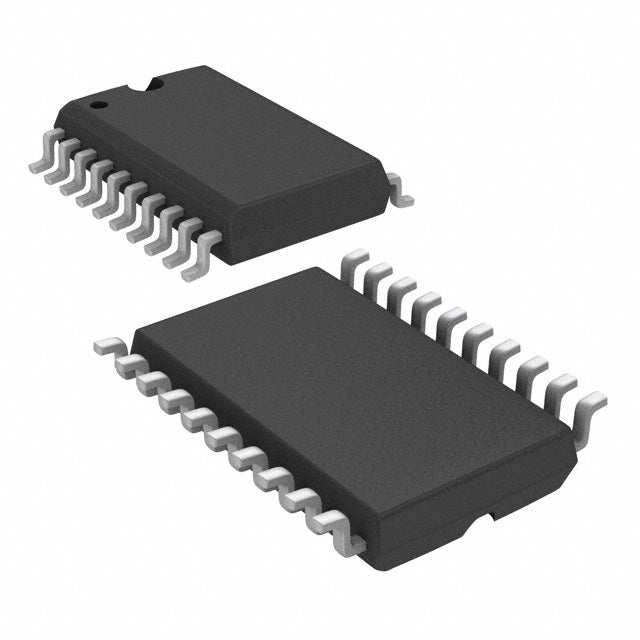

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
$12.78
$13.45 $12.78
Promotion Épuisé
Quantity Unit Price Total Price
1 $12.78 $12.78
15+ $12.37 $185.55
25+ $12.11 $302.75
50+ $11.43 $571.50
100+ $10.09 $1,009.00
N+ $2.02 Price Inquiry
Frais d'expédition calculés à l'étape de paiement.
Component Recycling

Request Quote / Inquiry

Attributs du produit Valeur de la propriété
Fabricant Instruments de Texas
Gamme de produits
Conditionnement Marché | Tube
Nombre de bits 10
Fréquence d'échantillonnage (par seconde) 38k
Nombre d'entrées 11
Type d'entrée Extrémité simple
Interface de données SPI
Configuration MUX-S/H-ADC
Rapport S/H:ADC 1:1
Nombre de convertisseurs A/D 1
Architecture SAR
Type de référence Externe
Alimentation en tension analogique 5V
Tension - Alimentation, Numérique 5V
Caractéristiques Adresse sélectionnable
Température de fonctionnement 0°C ~ 70°C
Type de montage Montage en surface
Grade -
Qualification -
Emballage / Étui 20-SOIC (0,295", largeur 7,50 mm)
Emballage du dispositif du fournisseur 20-SOIC
RoHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY
Base Product Number ： TLC1542
10-bit 11-channel 38k SPS ADC Analog-to-Digital Converter MUX-S/H-ADC SOIC-20 SPI Texas Instruments TLC1542
Q: What type of ADC is the TLC1542CDW?
A: The TLC1542CDW is a 10-bit analog-to-digital converter with a MUX-S/H-ADC architecture, featuring a built-in sample-and-hold function.
Q: What is the resolution of the TLC1542CDW?
A: The TLC1542CDW offers 10-bit resolution, providing 1024 discrete output levels for precise signal digitization.
Q: What is the sampling rate of the TLC1542CDW?
A: The TLC1542CDW supports a maximum sampling rate of 38k SPS (samples per second), suitable for moderate-speed applications.
Q: How many input channels does the TLC1542CDW have?
A: It features 11 input channels, allowing multiplexed conversion of multiple analog signals.
Q: What digital interface does the TLC1542CDW use?
A: It uses an SPI (Serial Peripheral Interface) for communication with microcontrollers and digital systems.
Q: What is the package type of the TLC1542CDW?
A: The device is available in a 20-SOIC (0.295", 7.50mm Width) surface-mount package.
