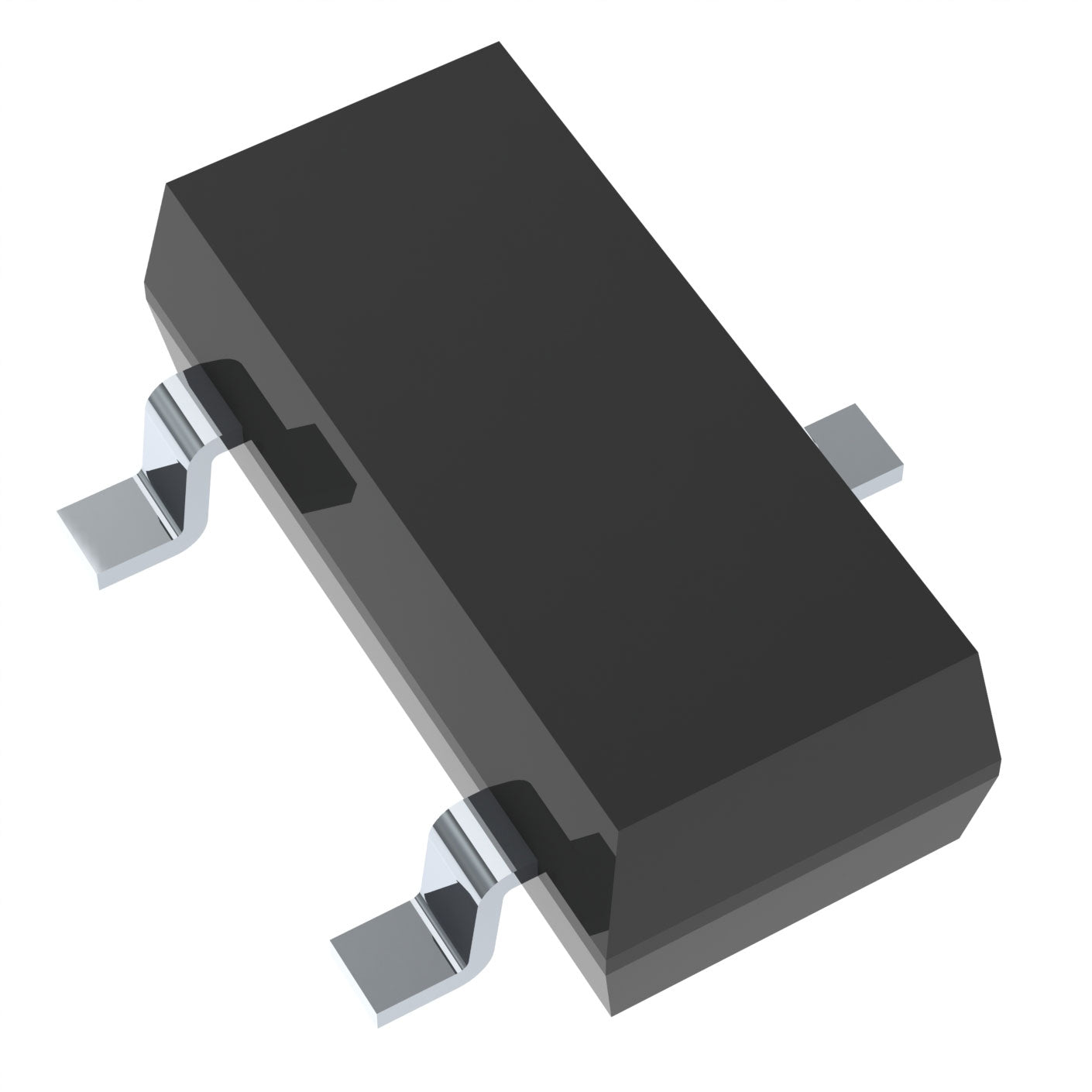

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Prix habituel $1.15
Prix habituel $1.21 Prix promotionnel $1.15
Promotion Épuisé
Quantity Unit Price Total Price
1 $1.15 $1.15
15+ $1.11 $16.65
25+ $1.09 $27.25
50+ $1.03 $51.50
100+ $0.91 $91.00
N+ $0.18 Price Inquiry
Frais d'expédition calculés à l'étape de paiement.
Quantité
Component Recycling

Request Quote / Inquiry

Attributs du produit Valeur de la propriété
Fabricant Société de semi-conducteurs de Taïwan
Gamme de produits
Conditionnement Bande coupée (CT) | Bande et bobine (TR)
Configuration de sortie Positif
Type de sortie Fixé
Nombre de régulateurs 1
Tension d'entrée (max.) 16V
Tension - Sortie (Min/Fixe) 5V
Tension - Sortie (Max) -
Chute de tension (max.) 0,6 V à 80 mA
Courant - Sortie 80 mA
Courant - Quiescent (Iq) -
Courant - Alimentation (Max) 3,1 mA
PSRR 65 dB (100 Hz)
Fonctions de contrôle Limite actuelle
Caractéristiques de protection Surintensité, surchauffe, inversion de polarité
Température de fonctionnement -40°C ~ 150°C (TJ)
Grade -
Qualification -
Type de montage Montage en surface
Emballage / Étui TO-236-3, SC-59, SOT-23-3
Emballage du dispositif du fournisseur SOT-23
RoHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY
Base Product Number : TS5204CX50
5V 80mA LDO Linear Regulator Low Dropout SOT-23 Taiwan Semiconductor
Q: What is the output voltage of the TS5204CX50 RFG?
A: The fixed output voltage is 5V.
Q: What is the maximum output current?
A: It can deliver up to 80mA.
Q: What is the input voltage range?
A: The input voltage range is 5V to 18V (based on 5V min input).
Q: What is the dropout voltage?
A: Dropout voltage is 0.6V at 80mA.
Q: What is the quiescent current?
A: Quiescent current is not specified in the provided data.
Q: What package is available?
A: It comes in a SOT-23 package.
