WM8741GEDS/RV

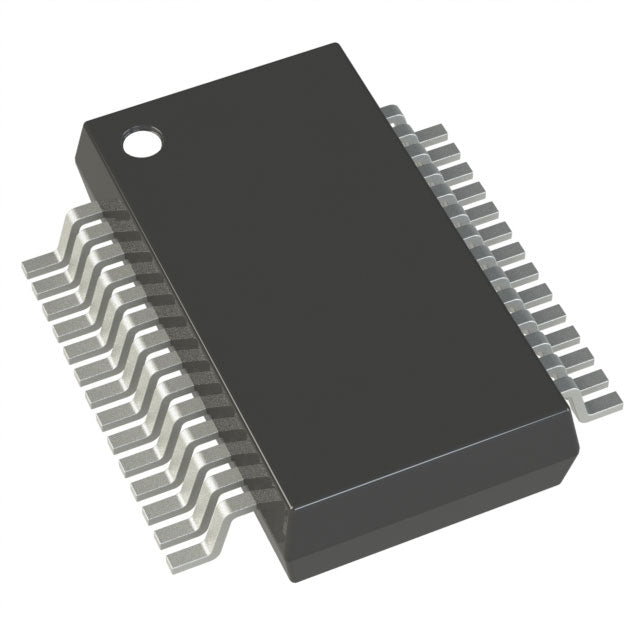

WM8741GEDS/RV - Premium Stereo Audio DAC

The WM8741GEDS/RV from Cirrus Logic is a high-performance 24-bit stereo digital-to-analog converter designed for professional audio applications requiring exceptional sound quality and precision. This dual-channel audio DAC delivers industry-leading performance with 192kHz sampling rate capability, making it ideal for high-fidelity audio systems, studio equipment, and premium consumer electronics.

Key Features & Benefits

• 24-bit resolution ensures superior audio fidelity and dynamic range
• 192kHz sampling rate supports high-resolution audio formats
• Dual-channel architecture for stereo audio applications
• SPI data interface provides flexible system integration
• Surface mount 28-SSOP package optimized for automated assembly
• Wide operating temperature range (0°C to 70°C) for reliable performance
• RoHS compliant meeting environmental standards

Applications

Perfect for high-end audio equipment, professional recording systems, digital audio workstations, home theater receivers, automotive premium audio systems, and broadcast equipment where audio quality is paramount.

Complete Technical Specifications

Product attributes	Property Value
Manufacturer	Cirrus Logic Inc.
Product Series
Packaging	Cut Tape (CT) |
Type	DAC, Audio
Number of Channels	2
Resolution (Bits)	24 b
Sampling Rate (Per Second)	192k
Data Interface	SPI
Voltage Supply Source	Analog and Digital
Voltage - Supply	3.15V ~ 3.6V, 5V
Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount
Grade	-
Qualification	-
Package / Case	28-SSOP (0.209", 5.30mm Width)
Supplier Device Package	28-SSOP
ROHS
