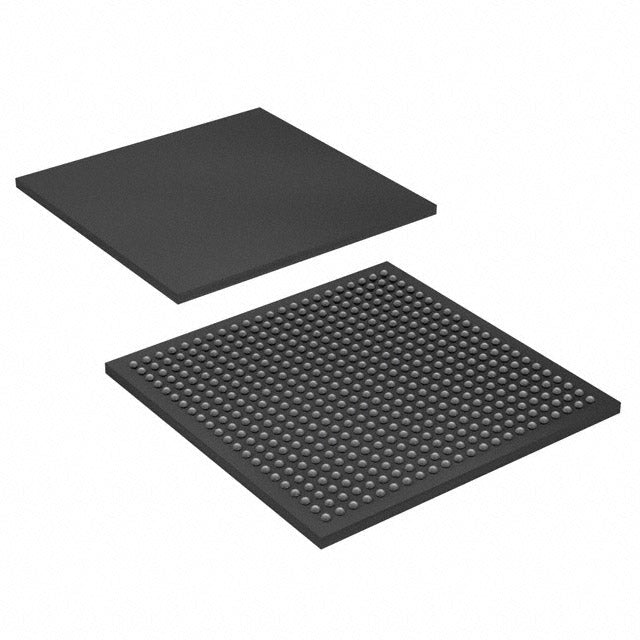

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
AMD
XC3SD1800A-4CSG484C
XC3SD1800A-4CSG484C
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 296.32 AED | Dhs. 296.32 AED |
| 15+ | Dhs. 286.95 AED | Dhs. 4,304.25 AED |
| 25+ | Dhs. 280.71 AED | Dhs. 7,017.75 AED |
| 50+ | Dhs. 265.12 AED | Dhs. 13,256.00 AED |
| 100+ | Dhs. 233.93 AED | Dhs. 23,393.00 AED |
| N+ | Dhs. 46.79 AED | Price Inquiry |
Impossible de charger la disponibilité du service de retrait
Apply for PCBA engineering assistance
AMD Spartan-3A DSP FPGA - XC3SD1800A-4CSG484C
The XC3SD1800A-4CSG484C is a high-performance FPGA from AMD's Spartan-3A DSP family, engineered for demanding industrial, communications, and embedded computing applications. With 1.8 million system gates and 37,440 logic elements, this device delivers exceptional processing power in a compact 484-pin CSPBGA package.
Key Features & Benefits
- High Logic Density: 4,160 CLBs and 37,440 logic cells provide ample resources for complex digital designs
- Extensive Memory: 1,548,288 total RAM bits for data buffering and processing
- Rich I/O Capability: 309 user I/O pins support diverse interface requirements
- Industrial Temperature Range: Operates reliably from 0°C to 85°C (junction temperature)
- Low Power Consumption: 1.14V to 1.26V supply voltage for energy-efficient operation
- Surface Mount Design: 484-CSPBGA (19x19mm) package optimized for automated assembly
- RoHS Compliant: Meets environmental standards for lead-free manufacturing
Ideal Applications
This FPGA is perfectly suited for aerospace systems, automotive electronics, industrial automation, high-speed communications infrastructure, edge computing platforms, and signal processing applications requiring DSP capabilities.
Technical Specifications
| Product attributes | Property Value |
| Manufacturer | AMD |
| Product Series | Spartan®-3A DSP |
| Packaging | Tray | Tray |
| Number of LABs/CLBs | 4160 |
| Number of Logic Elements/Cells | 37440 |
| Total RAM Bits | 1548288 |
| Number of I/O | 309 |
| Number of Gates | 1800000 |
| Voltage - Supply | 1.14V ~ 1.26V |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Grade | - |
| Qualification | - |
| Package / Case | 484-FBGA, CSPBGA |
| Supplier Device Package | 484-CSPBGA (19x19) |
| ROHS |  |
Authentic AMD product with full manufacturer traceability and quality assurance.
Datasheets:
XC3SD1800A-4CSG484C
.pdf
