XCSU150P-1SBVF784E

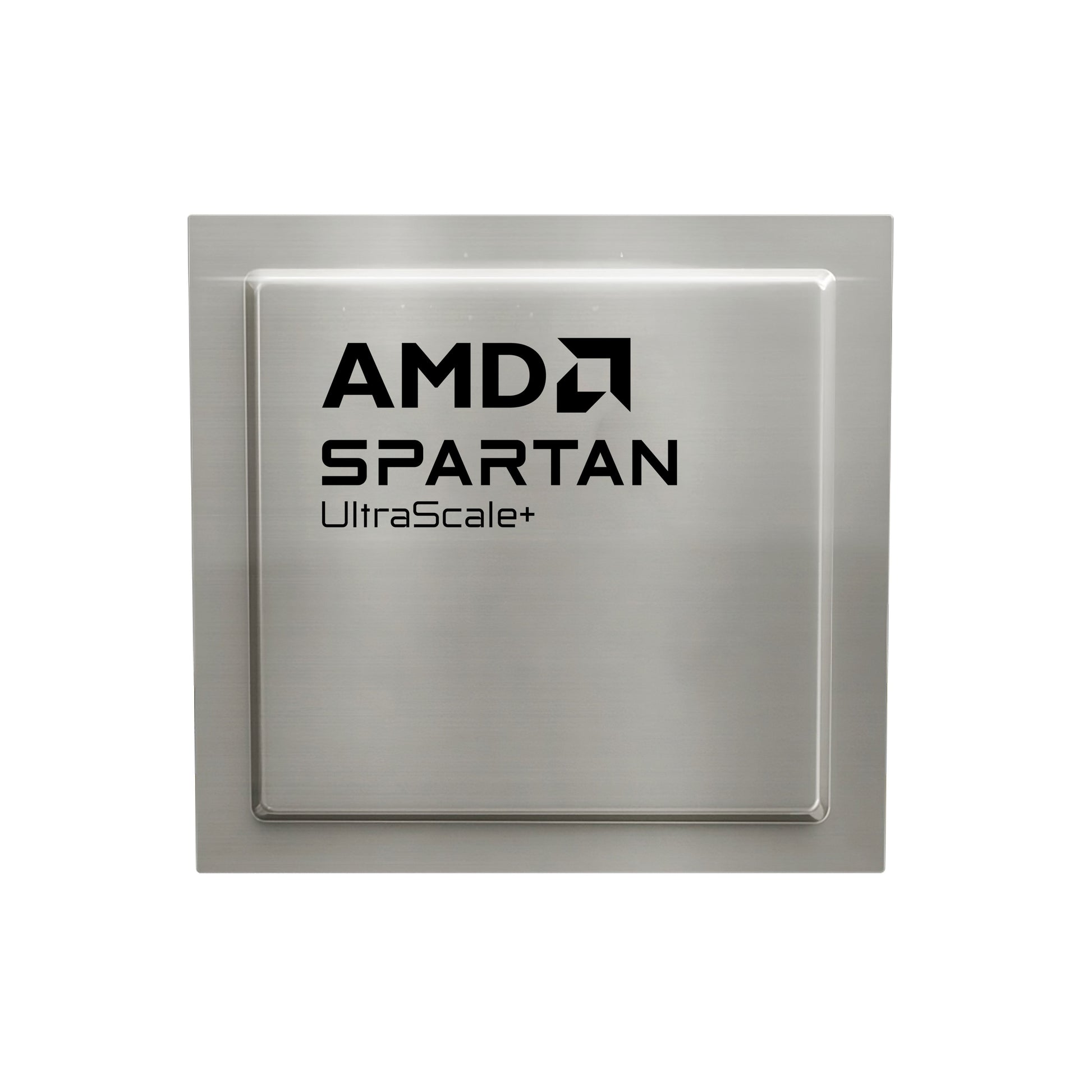

AMD Spartan® UltraScale+™ FPGA - XCSU150P-1SBVF784E

The XCSU150P-1SBVF784E is a high-performance FPGA from AMD's Spartan® UltraScale+™ series, engineered for demanding embedded applications requiring exceptional logic density, I/O flexibility, and industrial-grade reliability. This powerful device delivers outstanding performance with 137,813 logic elements and 408 I/O pins in a compact 784-FCBGA package, making it the ideal choice for next-generation embedded systems.

Key Features & Benefits:

• Massive Logic Density: 137,813 logic elements/cells enable complex digital designs and advanced signal processing algorithms
• Extensive On-Chip Memory: 6,186,598 total RAM bits (6.2Mb) for data-intensive applications and efficient buffering
• Flexible I/O Architecture: 408 I/O pins supporting multiple interface standards including LVDS, DDR3/DDR4, PCIe, and more
• Industrial Temperature Range: Operates reliably from 0°C to 100°C (TJ) for harsh environments
• Compact Form Factor: 784-FCBGA (23x23mm) surface mount package optimizes board space
• Energy Efficient: 0.825V ~ 0.876V supply voltage reduces power consumption
• RoHS Compliant: Environmentally friendly, lead-free manufacturing
• AMD Ecosystem: Full support for Vivado Design Suite and comprehensive IP libraries

Ideal Applications:

The XCSU150P-1SBVF784E excels in:

• Industrial Automation: PLC controllers, motion control, robotics
• Embedded Vision: Image processing, machine vision, video analytics
• Communications Infrastructure: Protocol bridging, packet processing, software-defined radio
• Test & Measurement: High-speed data acquisition, signal generation, protocol analysis
• Motor Control: Advanced FOC algorithms, multi-axis control systems
• Medical Devices: Ultrasound imaging, patient monitoring, diagnostic equipment

Why Choose Spartan UltraScale+?

AMD's Spartan UltraScale+ architecture combines proven 16nm FinFET technology with advanced features like DSP slices, block RAM, and high-speed transceivers. This FPGA delivers the perfect balance of performance, power efficiency, and cost-effectiveness for volume production.

Complete Technical Specifications:

Product attributes	Property Value
Manufacturer	AMD
Product Series	Spartan® UltraScale+™
Packaging	Tray
Number of LABs/CLBs	-
Number of Logic Elements/Cells	137813
Total RAM Bits	6186598
Number of I/O	408
Voltage - Supply	0.825V ~ 0.876V
Operating Temperature	0°C ~ 100°C (TJ)
Memory Type	Surface Mount
Grade	-
Qualification	-
Package / Case	784-BGA, FCBGA
Supplier Device Package	784-FCBGA (23x23)
ROHS

Development & Support:

Backed by AMD's industry-leading FPGA technology and comprehensive development ecosystem including Vivado Design Suite, extensive IP libraries, reference designs, and technical documentation. Get your design to market faster with proven tools and worldwide technical support.

Quality & Reliability:

Manufactured to the highest quality standards with full traceability. Each device undergoes rigorous testing to ensure reliability in mission-critical applications. Suitable for industrial, commercial, and extended temperature applications.

Order genuine AMD XCSU150P-1SBVF784E FPGAs with confidence. Fast shipping, technical support, and competitive pricing for engineers and procurement teams worldwide.
