XCSU55P-2SBVF784E

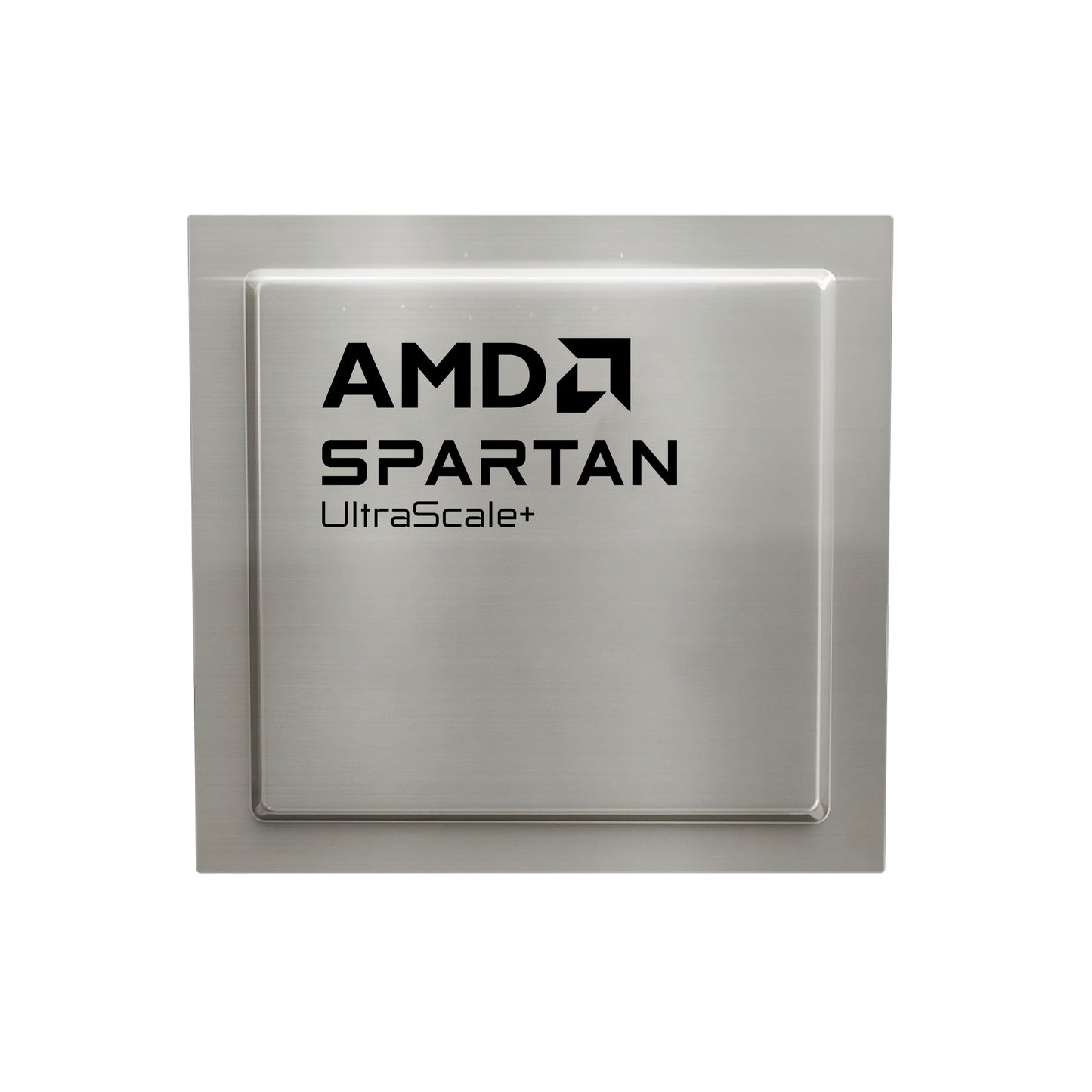

AMD Spartan® UltraScale+™ FPGA - XCSU55P-2SBVF784E

The XCSU55P-2SBVF784E is a high-performance field-programmable gate array (FPGA) from AMD's Spartan® UltraScale+™ series, designed for demanding embedded applications requiring flexibility, reliability, and cost-effectiveness.

Key Features

• 52,500 Logic Elements - Ample programmable logic for complex digital designs
• 2.6 Mb Total RAM - Integrated block RAM for efficient data storage and buffering
• 352 I/O Pins - Extensive connectivity options for interfacing with external devices
• Industrial Temperature Range - Operates reliably from 0°C to 100°C (TJ)
• 784-FCBGA Package - Compact 23x23mm surface mount footprint
• Low Power Consumption - Optimized 0.825V to 0.876V supply voltage

Ideal Applications

This FPGA is perfectly suited for industrial automation, embedded vision systems, motor control, digital signal processing, communications infrastructure, and prototyping advanced digital circuits.

Technical Specifications

Product attributes	Property Value
Manufacturer	AMD
Product Series	Spartan® UltraScale+™
Packaging	Tray
Number of LABs/CLBs	-
Number of Logic Elements/Cells	52500
Total RAM Bits	2621440
Number of I/O	352
Voltage - Supply	0.825V ~ 0.876V
Operating Temperature	0°C ~ 100°C (TJ)
Memory Type	Surface Mount
Grade	-
Qualification	-
Package / Case	784-BGA, FCBGA
Supplier Device Package	784-FCBGA (23x23)
ROHS

RoHS Compliant - Meets environmental standards for hazardous substance restrictions.
