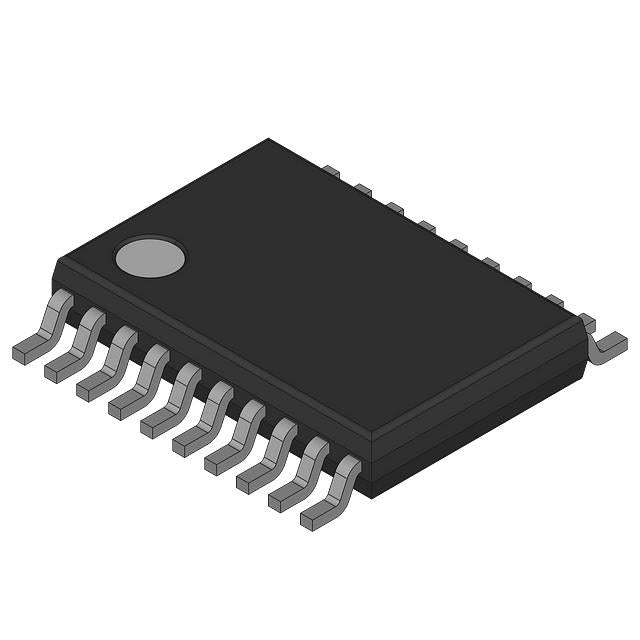

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Unitrode
通常価格
$2.20
(Volume discounts available! Contact our customer support for customized pricing on bulk orders.Pro Tip: 🇺🇸 Switch your region to United States for localized offers.)
(Volume discounts available! Contact our customer support for customized pricing on bulk orders.Pro Tip: 🇺🇸 Switch your region to United States for localized offers.)
通常価格
$2.32
セール価格
単価
あたり
| quantity | unit price | total price |
| 1 | $2.20 | $2.20 |
| 15+ | $2.13 USD | $32.02 USD |
| 25+ | $2.09 USD | $52.20 USD |
| 50+ | $1.97 USD | $98.60 USD |
| 100+ | $1.74 USD | $174.00 USD |
| N+ | $1.16 USD | Price Inquiry |
配送料はチェックアウト時に計算されます。
受取状況を読み込めませんでした
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Unitrode |
| Product Series | |
| Packaging | Bulk | |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 8V |
| Frequency - Switching | 150kHz ~ 1.2MHz |
| Duty Cycle (Max) | 88% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Low Battery, Reset |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
Datasheets:
UCC29422PW
.pdf
×
