Altera 10AS016E4F29E3SG

Altera Arria 10 SX FPGA System-on-Chip (SoC)

The 10AS016E4F29E3SG is a high-performance FPGA SoC from Altera's Arria 10 SX family, combining 160K logic elements with a dual ARM® Cortex®-A9 MPCore™ processor running at 1.5GHz. This industrial-grade device delivers exceptional processing power and programmable logic flexibility for demanding applications in aerospace, automotive, communications, and industrial automation.

Key Features

• 160,000 Logic Elements – Extensive FPGA fabric for complex digital designs
• Dual ARM Cortex-A9 MPCore with CoreSight – High-performance embedded processing at 1.5GHz
• 256KB On-Chip RAM – Fast memory for real-time operations
• Rich Connectivity – EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
• Industrial Temperature Range – Operates reliably from 0°C to 100°C (TJ)

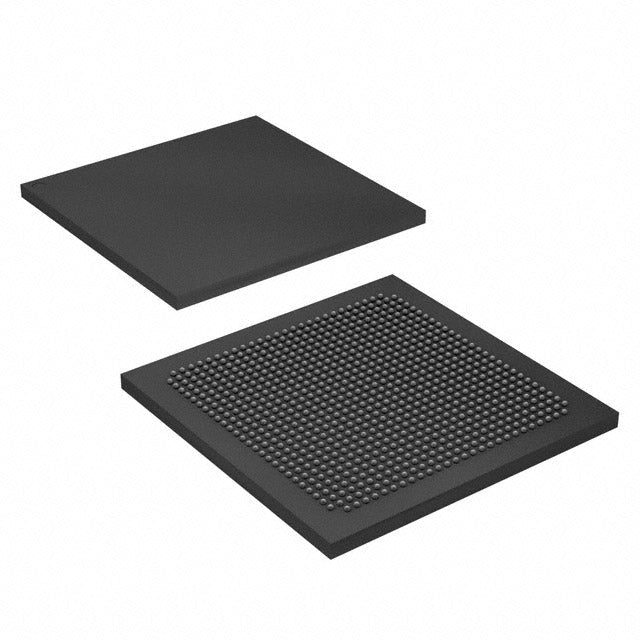

• 780-FBGA Package – Compact 29×29mm footprint for space-constrained designs

Applications

Ideal for embedded vision systems, motor control, protocol bridging, software-defined radio, test and measurement equipment, and high-speed data acquisition systems requiring both programmable logic and embedded processing.

All specifications are subject to manufacturer documentation. Contact us for availability, lead times, and volume pricing.

• 10AS016E4F29E3SG.pdf
