10AS022E3F27I2SG

Altera Arria 10 SX FPGA System-on-Chip - 10AS022E3F27I2SG

The 10AS022E3F27I2SG is a high-performance FPGA System-on-Chip from Intel's Arria 10 SX family, combining programmable logic with embedded processing for demanding industrial, automotive, aerospace, and communications applications.

Key Features

• 220K Logic Elements - Extensive programmable fabric for complex digital designs
• Dual ARM Cortex-A9 MPCore with CoreSight - 1.5GHz embedded processors for real-time control and signal processing
• 256KB On-Chip RAM - High-speed memory for data buffering and processing
• Industrial Temperature Range - Operates reliably from -40°C to 100°C (TJ)
• Rich Connectivity - EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
• Advanced Peripherals - DMA, POR, WDT for robust system design

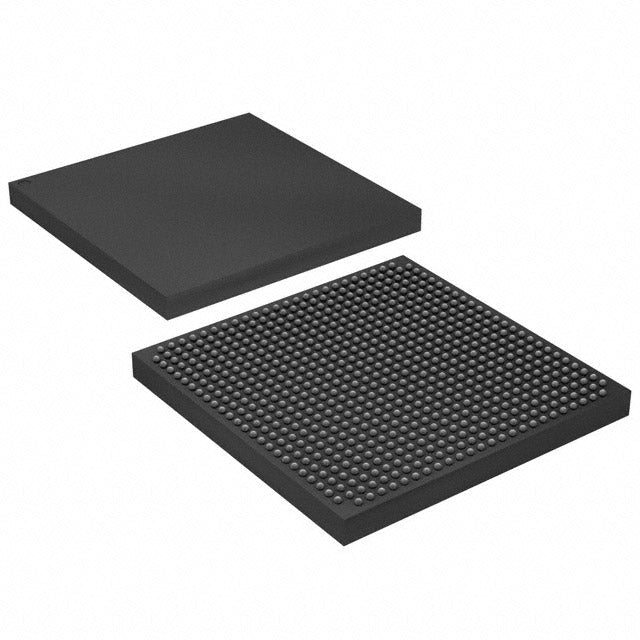

• Compact 672-FBGA Package - 27mm × 27mm flip-chip BGA for space-constrained designs

Applications

Ideal for embedded vision systems, motor control, industrial automation, protocol bridging, software-defined radio, and edge computing platforms requiring both FPGA flexibility and ARM processing power.

Documentation: Full datasheets, reference designs, and development tools available from Intel/Altera.

RoHS Compliance: This device meets RoHS standards for lead-free manufacturing.

• 10AS022E3F27I2SG.pdf
