10AS027H1F34E1SG

Altera Arria 10 SX FPGA System-on-Chip (SoC)

The 10AS027H1F34E1SG is a high-performance FPGA System-on-Chip from Altera's Arria 10 SX series, combining the flexibility of FPGA fabric with the processing power of dual ARM® Cortex®-A9 MPCore™ processors. This advanced SoC delivers exceptional performance for demanding applications in industrial automation, automotive systems, aerospace, communications infrastructure, and edge computing.

Key Features & Benefits

• Dual-Core Processing Power: ARM Cortex-A9 MPCore with CoreSight running at 1.5GHz for high-performance embedded processing
• Massive Logic Capacity: 270,000 logic elements provide extensive FPGA resources for complex digital designs
• Integrated Memory: 256KB on-chip RAM for fast data access and processing
• Rich Connectivity: Multiple interfaces including Ethernet, USB OTG, SPI, I2C, UART/USART, MMC/SD/SDIO, and EBI/EMI
• Advanced Peripherals: DMA, Power-On Reset (POR), and Watchdog Timer (WDT) for robust system operation
• Industrial Temperature Range: Operates reliably from 0°C to 100°C (junction temperature)

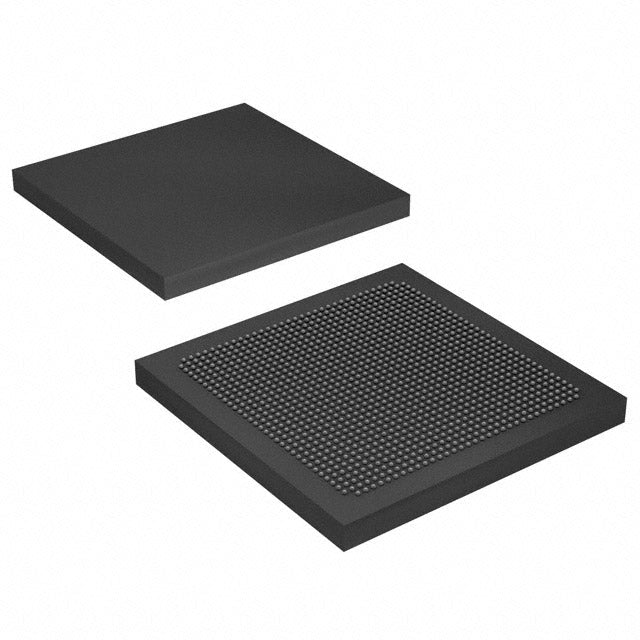

• Compact High-Density Package: 1152-pin FBGA with flip-chip technology (35mm x 35mm)

Ideal Applications

This versatile FPGA SoC is engineered for applications requiring both high-performance processing and programmable logic, including motor control systems, industrial vision processing, protocol bridging, software-defined radio, test and measurement equipment, and real-time data acquisition systems.

Backed by Altera's proven FPGA technology and comprehensive development tools, this Arria 10 SX device enables rapid prototyping and deployment of advanced embedded systems.

• 10AS027H1F34E1SG.pdf
