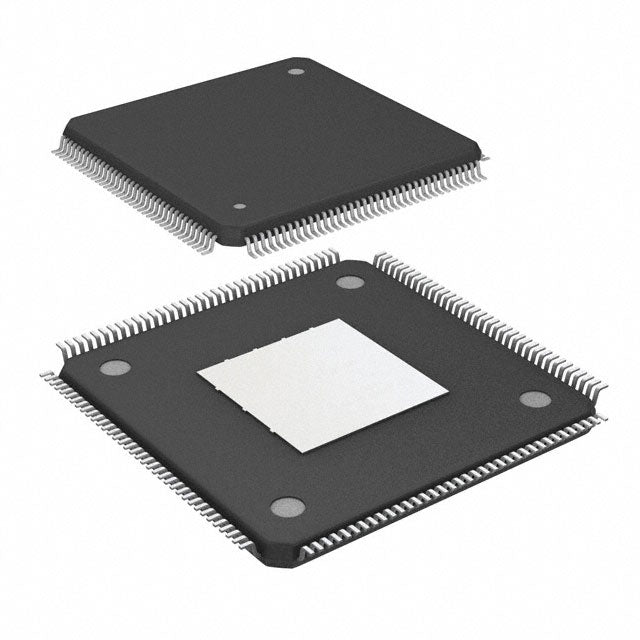

10CL006YE144C8G

The 10CL006YE144C8G is a high-performance, low-power field-programmable gate array (FPGA) from Intel's Cyclone 10 LP series, designed for cost-sensitive applications requiring efficient logic integration and power optimization. Launched in 2017 and fabricated using a 60 nm lithography process, this integrated circuit (IC) chip excels in embedded systems, Internet of Things (IoT) devices, industrial automation, and consumer electronics where reliability and low energy consumption are paramount. As part of the Cyclone 10 LP family, it offers a balance of performance, flexibility, and affordability, making it a popular choice for engineers developing programmable logic solutions.

Key Technical Specifications

• Logic Elements: 6272 logic elements (LEs) providing substantial programmable logic capacity
• Embedded Memory: 276,480 total RAM bits (270 Kb) for data buffering and storage
• DSP Blocks: 15 dedicated DSP blocks for efficient multiplication and signal processing
• I/O Pins: 88 user I/O pins with support for multiple voltage standards
• Package: 144-pin EQFP (20x20mm) with exposed pad for enhanced thermal performance
• Operating Voltage: 1.2V core voltage for low-power operation
• Temperature Range: Commercial grade, 0°C to 85°C (TJ)
• Mounting: Surface mount technology (SMT) compatible

Features and Benefits

• High Logic Density: With 6000 logic elements and 270 Kb of embedded memory, the 10CL006YE144C8G supports complex designs without compromising on space or power, enabling sophisticated control algorithms and data processing tasks.
• Advanced DSP Capabilities: Equipped with 15 DSP blocks, it handles multiplication operations efficiently, ideal for audio/video processing, digital filtering, and algorithm acceleration in real-time applications.
• Flexible I/O Support: The device supports a wide range of I/O standards, including 3.0 V to 3.3 V LVTTL, LVCMOS, PCI, SSTL, HSTL, LVDS, and more, with up to 65 LVDS pairs for high-speed differential signaling, ensuring compatibility with diverse system architectures.
• Low-Power Design: Optimized for 1.2 V core voltage, this FPGA minimizes energy use, extending battery life in portable applications and reducing thermal output in dense systems, making it ideal for energy-conscious designs.
• Configurable GPIOs: Highly configurable general-purpose I/O pins enable seamless integration with various peripherals and protocols, providing maximum design flexibility.
• Security and Reliability: Built-in features like configuration security and error detection ensure dependable operation in mission-critical environments, protecting intellectual property and ensuring system integrity.
• Cost-Effective Solution: The Cyclone 10 LP series delivers excellent price-to-performance ratio, making it suitable for high-volume production and budget-conscious projects.
• Industry-Standard Tools: Fully supported by Intel Quartus Prime software for design entry, synthesis, simulation, and programming, streamlining the development workflow.

Applications

The 10CL006YE144C8G is versatile across industries and application domains:

• Embedded Systems: For microcontroller interfacing, custom logic implementation, and system-on-chip (SoC) prototyping.
• IoT and Edge Computing: Enabling real-time data processing with low latency, sensor fusion, and edge analytics in connected devices.
• Industrial Control: Supporting programmable logic controllers (PLCs), motor drives, robotics, and sensor networks in factory automation.
• Consumer Electronics: In smart devices, displays, multimedia systems, and home automation products.
• Communications: Protocol bridging, data encryption/decryption, and signal conditioning in networking equipment.
• Medical Devices: Portable diagnostic equipment, patient monitoring systems, and medical imaging applications.
• Automotive: Advanced driver assistance systems (ADAS), infotainment, and vehicle control units.

Why Choose the 10CL006YE144C8G?

This FPGA combines Intel's proven technology with an optimal balance of logic capacity, memory, and I/O resources. Its low-power architecture makes it particularly attractive for battery-powered and thermally-constrained applications. The 144-pin EQFP package offers a compact footprint while providing sufficient I/O for most embedded applications. Engineers appreciate the Cyclone 10 LP series for its ease of use, comprehensive development tool support, and long-term availability, ensuring design longevity and supply chain stability.

Design Considerations

When integrating the 10CL006YE144C8G into your design, consider proper power supply decoupling, thermal management for the exposed pad package, and I/O voltage level compatibility with your system. The device supports in-system programmability (ISP) through JTAG interface, enabling field updates and simplified manufacturing. Reference designs and application notes are available to accelerate development and ensure best practices.
