Altera 1SX040HH1F35E2VG

Altera Stratix 10 SX FPGA System-on-Chip (SoC)

The 1SX040HH1F35E2VG is a high-performance FPGA SoC from Altera's Stratix® 10 SX series, combining the flexibility of FPGA logic with the processing power of a quad-core ARM® Cortex®-A53 MPCore™ processor. This advanced device delivers exceptional performance for mission-critical applications in aerospace, automotive, industrial automation, medical equipment, and telecommunications.

Key Features & Benefits

• Powerful Processing: Quad ARM Cortex-A53 MPCore with CoreSight, ARM NEON, and floating-point capabilities running at 1.5GHz
• Massive Logic Capacity: 400,000 logic elements for complex FPGA designs
• Integrated Memory: 256KB on-chip RAM for efficient data processing
• Rich Connectivity: EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG interfaces
• Advanced Peripherals: DMA and watchdog timer (WDT) support
• Industrial Temperature Range: Operates reliably from 0°C to 100°C (TJ)

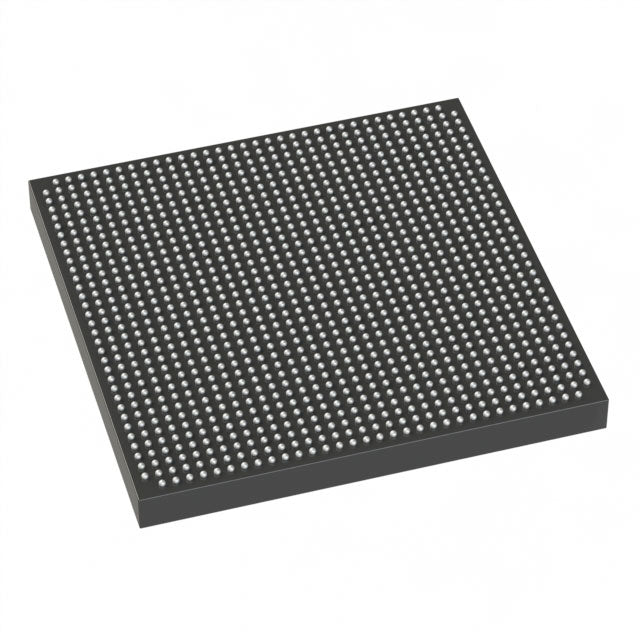

• Compact Package: 1152-FBGA (35x35mm) for space-constrained designs
• Active Status: Currently in production with full manufacturer support

Applications

This FPGA SoC is engineered for demanding applications requiring both high-performance processing and programmable logic, including advanced driver assistance systems (ADAS), industrial control systems, medical imaging equipment, 5G telecommunications infrastructure, and aerospace/defense systems.

Why Choose This Component? The 1SX040HH1F35E2VG offers the perfect balance of FPGA programmability and ARM processing power, enabling you to accelerate time-to-market while maintaining design flexibility. With full RoHS/REACH compliance and long lifecycle availability, this component is ideal for designs requiring extended product support and regulatory compliance.

• 1SX040HH1F35E2VG.pdf
