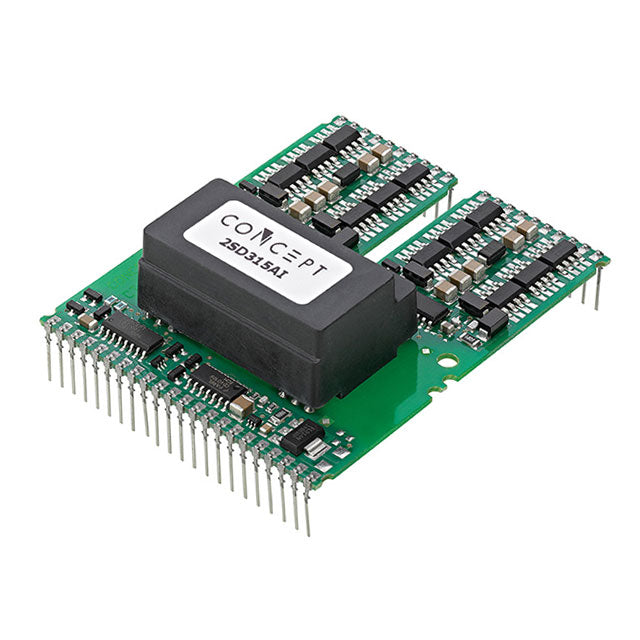

Power Integrations 2SD315AI
Regular price
$106.43
Regular price
$112.03
Sale price
$106.43
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $106.43 | $106.43 |
| 15+ | $103.07 | $1,546.05 |
| 25+ | $100.83 | $2,520.75 |
| 50+ | $95.23 | $4,761.50 |
| 100+ | $84.02 | $8,402.00 |
| N+ | $16.80 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | SCALE™-1 |
| Packaging | Tray | |
| Driven Configuration | Half-Bridge |
| Channel Type | - |
| Number of Drivers | 2 |
| Gate Type | IGBT, MOSFET (N-Channel, P-Channel) |
| Voltage - Supply | - |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 18A, 18A |
| Input Type | - |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 160ns, 130ns |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 44-DIP Module, 42 Leads |
| Supplier Device Package | Module |
2SD315AI.pdf
×
