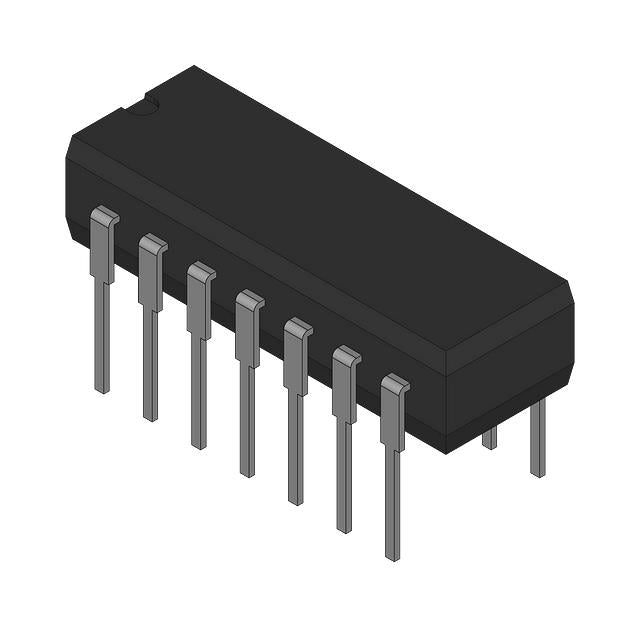

National Semiconductor 5486DMQB
Regular price
$3.68
Regular price
$0.92
Sale price
$3.68
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.68 | $3.68 |
| 15+ | $0.85 | $12.75 |
| 25+ | $0.83 | $20.75 |
| 50+ | $0.78 | $39.00 |
| 100+ | $0.69 | $69.00 |
| N+ | $0.14 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | National Semiconductor |
| Product Series | |
| Packaging | Bulk | |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 57 mA |
| Current - Output High, Low | 800µA, 16mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 30ns @ 5V, 15pF |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-CERDIP |
| Supplier Device Package | 14-CDIP (0.300", 7.62mm) |
5486DMQB.pdf
×
