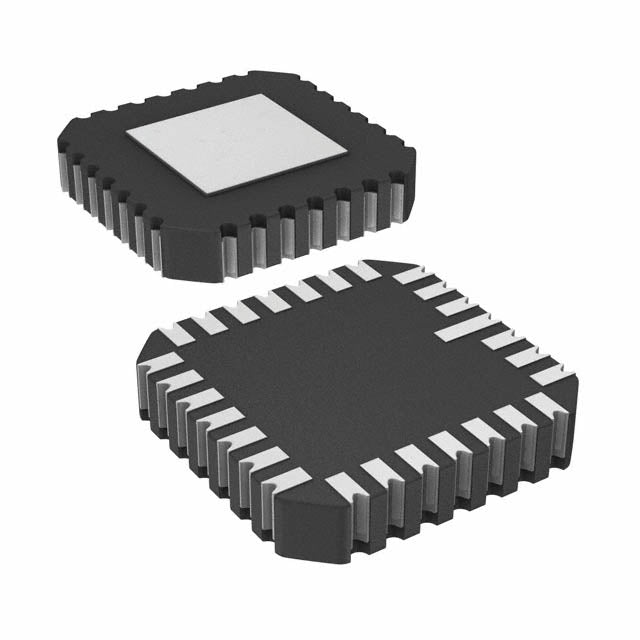

Analog Devices Inc. 5962-87591043X
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $909.09 | $909.09 |
| 15+ | $880.38 | $13,205.70 |
| 25+ | $861.25 | $21,531.25 |
| 50+ | $813.40 | $40,670.00 |
| 100+ | $717.71 | $71,771.00 |
| N+ | $143.54 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V, -15V |
| Voltage - Supply, Digital | 5V, -15V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-LCC |
| Supplier Device Package | 28-LCC (11.43x11.43) |
| ROHS |  |
The Analog Devices 5962-87591043X is a 12-bit, single-channel analog-to-digital converter designed for high-reliability applications. Featuring a parallel interface and internal voltage reference, it delivers consistent performance across the full military temperature range of -55°C to 125°C. Housed in a compact 28-LCC package, this ADC is ideal for aerospace, defense, and industrial systems requiring precise signal digitization in extreme conditions.
- High-Reliability Design: Qualified for -55°C to 125°C operation, ensuring performance in extreme military and aerospace environments.
- Simple Integration: Parallel interface enables direct connection to legacy and modern digital buses without complex serial protocols.
- Stable Reference: Internal reference eliminates the need for external components, reducing board space and BOM cost.
- Compact Footprint: 28-LCC package saves PCB area while providing robust solder joint reliability.
Military Avionics Sensor Digitization
The 12-bit resolution and parallel interface allow direct connection to flight control processors, converting analog position or pressure sensor signals with high accuracy across the full -55°C to 125°C range.
Precision Test & Measurement Equipment
In benchtop multimeters or data loggers, the single-channel ADC with internal reference ensures stable, repeatable conversions for DC voltage and current measurements.
Industrial Process Control Loops
For single-loop PID controllers, this ADC digitizes 4-20 mA transmitter signals with 12-bit precision, enabling tight regulation of temperature or flow in harsh environments.
Space-Grade Data Acquisition
The 28-LCC hermetic package and wide temperature range make it suitable for satellite telemetry systems where reliability and radiation tolerance are critical.
Embedded Control Systems
With its parallel output, the ADC can be memory-mapped directly into an embedded processor's address space, simplifying firmware for motor control or power monitoring.
- Q: What is the resolution of the 5962-87591043X ADC?
- A: This Analog Devices ADC has a 12-bit resolution, providing 4096 discrete output levels.
- Q: How many input channels does this ADC support?
- A: It features a single (1) input channel, making it suitable for dedicated single-signal conversion.
- Q: What digital interface does the 5962-87591043X use?
- A: It uses a parallel interface for high-speed data transfer to microcontrollers or DSPs.
- Q: What is the architecture of this converter?
- A: The architecture is classified as ADC (Analog-to-Digital Converter), optimized for general-purpose conversion.
- Q: What is the operating temperature range?
- A: It operates over the military temperature range of -55°C to 125°C.
- Q: What package is the 5962-87591043X available in?
- A: It comes in a 28-LCC (Leadless Chip Carrier) package.
