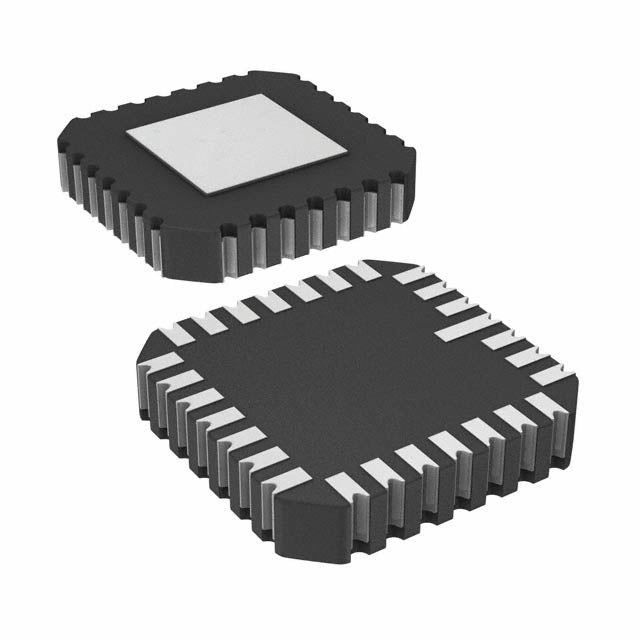

Analog Devices Inc. 5962-87591053X
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1,011.74 | $1,011.74 |
| 15+ | $979.79 | $14,696.85 |
| 25+ | $958.49 | $23,962.25 |
| 50+ | $905.24 | $45,262.00 |
| 100+ | $798.74 | $79,874.00 |
| N+ | $159.75 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V, -15V |
| Voltage - Supply, Digital | 5V, -15V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-LCC |
| Supplier Device Package | 28-LCC (11.43x11.43) |
| ROHS |  |
The Analog Devices 5962-87591053X is a 12-bit, single-channel analog-to-digital converter featuring a parallel interface and internal voltage reference. Designed for extreme reliability, it operates across -55°C to 125°C and is packaged in a 28-LCC. This ADC is well-suited for military, aerospace, and industrial applications requiring precise, stable conversion in compact form factors.
- Proven Military Reliability: Full -55°C to 125°C operation with hermetic 28-LCC packaging.
- Low System Cost: Internal reference eliminates external components, reducing BOM.
- Easy Digital Integration: Parallel interface simplifies connection to legacy 8/16-bit microcontrollers.
- Consistent Accuracy: 12-bit resolution provides 0.024% of full-scale precision.
Precision Industrial Weighing
The 12-bit resolution and internal reference ensure accurate load cell digitization in harsh factory environments, with stable performance from -55°C to 125°C.
Avionics Flight Control
Single-channel conversion of rudder or throttle position sensors with parallel output allows direct interface to flight computers in military aircraft.
Portable Field Instruments
The compact 28-LCC package and low component count (internal reference) make it ideal for handheld testers used in extreme outdoor conditions.
Automotive Engine Control (Military Vehicles)
For tracked vehicles, this ADC digitizes manifold pressure or temperature signals reliably across the full military temperature range.
Energy Distribution Monitoring
In substation automation, the ADC converts current transformer outputs with 12-bit precision, ensuring accurate power quality analysis.
- Q: What is the resolution of the 5962-87591053X?
- A: This ADC provides 12-bit resolution, delivering 4096 distinct digital output codes.
- Q: How many channels does it have?
- A: It has a single (1) input channel for dedicated analog signal conversion.
- Q: What interface is supported?
- A: It features a parallel interface, enabling straightforward connection to digital buses.
- Q: What is the architecture?
- A: The architecture is ADC (Analog-to-Digital Converter), optimized for general-purpose precision conversion.
- Q: What is the temperature range?
- A: It operates over -55°C to 125°C, suitable for military and aerospace use.
- Q: What package is available?
- A: It comes in a 28-LCC (Leadless Chip Carrier) package.
