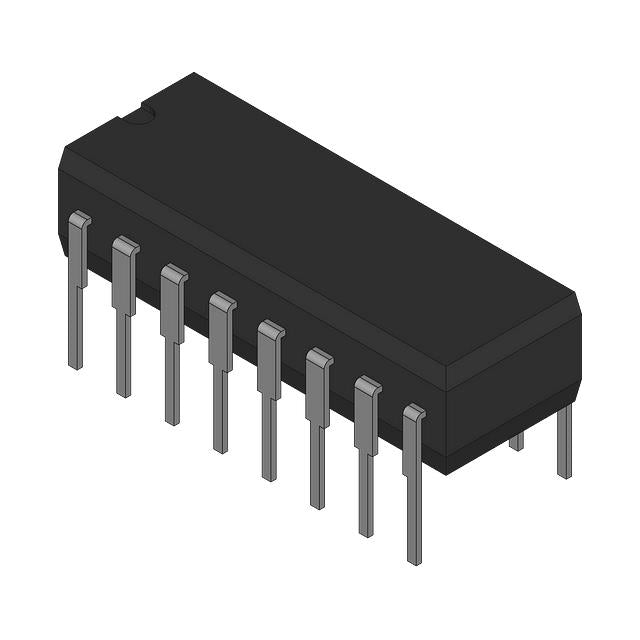

Analog Devices Inc. 5962-8966901EA
Regular price
$27.21
Regular price
$28.64
Sale price
$27.21
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $27.21 | $27.21 |
| 15+ | $26.35 | $395.25 |
| 25+ | $25.78 | $644.50 |
| 50+ | $24.34 | $1,217.00 |
| 100+ | $21.48 | $2,148.00 |
| N+ | $4.30 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Bulk | |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 80Ohm |
| Channel-to-Channel Matching (ΔRon) | 8Ohm |
| Voltage - Supply, Single (V+) | 15V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 500ns, 400ns |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 7pF, 5.5pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -70dB @ 500kHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP (0.300", 7.62mm) |
5962-8966901EA.pdf
×
