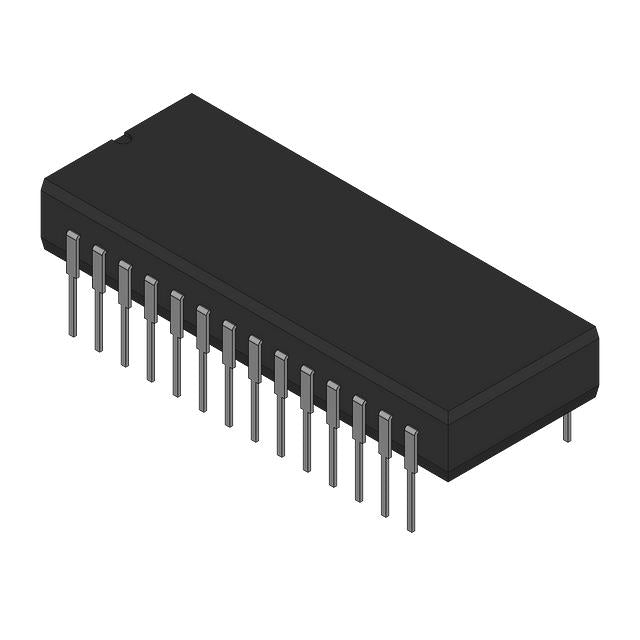

Analog Devices Inc. 5962-9306001MXA
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $904.31 | $904.31 |
| 15+ | $875.75 | $13,136.25 |
| 25+ | $856.71 | $21,417.75 |
| 50+ | $809.12 | $40,456.00 |
| 100+ | $713.93 | $71,393.00 |
| N+ | $142.79 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | AD872A |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 10M |
| Number of Inputs | 2 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 3:4 |
| Number of A/D Converters | 4 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-CDIP (0.605", 15.37mm) |
| Supplier Device Package | 28-CDIP |
The 5962-9306001MXA is a robust 12-bit analog-to-digital converter from Analog Devices, offering a sampling rate of 10M SPS. It features two input channels and a parallel interface, making it a flexible choice for multi-signal data acquisition. The S/H-ADC architecture ensures accurate sampling of dynamic signals. Housed in a 28-CDIP ceramic package and rated for -55°C to 125°C, this ADC is designed for high-reliability applications in military, aerospace, and industrial environments.
- High Accuracy: 12-bit resolution delivers fine granularity, making it suitable for precision measurement systems.
- Dual-Channel Efficiency: Two channels enable simultaneous sampling, improving system throughput and reducing latency.
- Wide Temperature Operation: The -55°C to 125°C range ensures functionality in extreme environments.
- Durable Ceramic Package: The 28-CDIP package provides excellent thermal and mechanical stability.
Precision Data Acquisition Systems
The 12-bit resolution and 10M SPS sampling rate make this ADC ideal for high-precision data acquisition systems in industrial and laboratory settings.
Avionics and Flight Control
With its wide temperature range and ceramic package, it is suitable for avionics systems that require reliable performance in extreme conditions.
Dual-Channel Sensor Monitoring
The 2-channel input allows for simultaneous monitoring of two sensors, such as pressure and temperature, in process control applications.
Military Communication Systems
This ADC can be used in military communication equipment for digitizing analog signals with high accuracy and speed.
Automotive Test Systems
In automotive R&D, this converter can be used in test systems to capture sensor data from engines and vehicle dynamics with high fidelity.
- Q: What is the resolution of the 5962-9306001MXA?
- A: This ADC provides a 12-bit resolution, ensuring high precision in analog-to-digital conversion.
- Q: What is the sampling rate?
- A: The sampling rate is 10M SPS, suitable for a wide range of high-speed data acquisition tasks.
- Q: How many channels are available?
- A: It features 2 input channels, allowing for dual-signal acquisition.
- Q: What interface does this device use?
- A: It uses a Parallel interface for direct and fast connection to digital systems.
- Q: What is the architecture of the 5962-9306001MXA?
- A: It uses a S/H-ADC (Sample and Hold) architecture to accurately capture analog signals.
- Q: What is the package type?
- A: The device is packaged in a 28-CDIP (Ceramic Dual In-line Package) with dimensions of 0.605" x 15.37mm.
