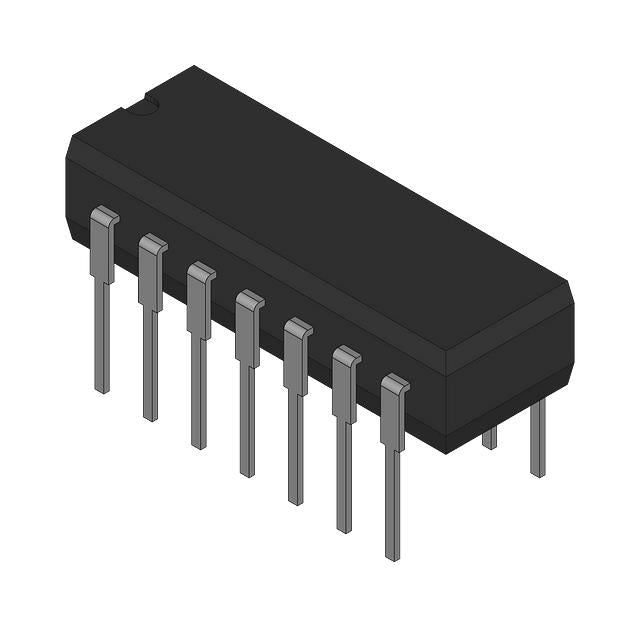

Texas Instruments 5962-9682601QCA
Regular price
$41.80
Regular price
$10.45
Sale price
$41.80
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $41.80 | $41.80 |
| 15+ | $9.61 | $144.15 |
| 25+ | $9.41 | $235.25 |
| 50+ | $8.88 | $444.00 |
| 100+ | $7.84 | $784.00 |
| N+ | $1.57 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 54AHCT |
| Packaging | Bulk | |
| Logic Type | OR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 8mA, 8mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 7.9ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Grade | Military |
| Qualification | MIL-PRF-38535L |
| Mounting Type | Through Hole |
| Package / Case | 14-CDIP |
| Supplier Device Package | 14-CDIP (0.300", 7.62mm) |
5962-9682601QCA.pdf
×
