Altera 5CSEBA5U19C7SN

Altera Cyclone V SE SoC FPGA - 5CSEBA5U19C7SN

The 5CSEBA5U19C7SN is a high-performance System-on-Chip (SoC) FPGA from Altera's Cyclone V SE family, combining a single ARM Cortex-A9 MPCore processor with CoreSight debug technology and 85,000 logic elements of programmable logic. Operating at 800MHz with 64KB on-chip RAM, this device delivers exceptional processing power for embedded applications requiring both hard processor performance and FPGA flexibility.

Designed for industrial applications, this SoC FPGA supports a comprehensive range of connectivity options including Ethernet, USB OTG, CANbus, SPI, I2C, UART/USART, and MMC/SD/SDIO interfaces. The integrated DMA controller, power-on-reset (POR), and watchdog timer (WDT) peripherals provide robust system management capabilities. With an operating temperature range of 0°C to 85°C (junction temperature), the device is suitable for demanding industrial, automotive, communications, and aerospace applications.

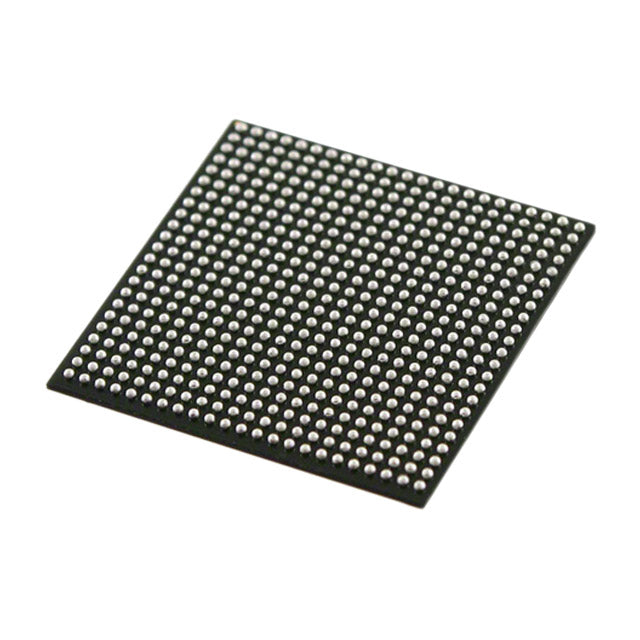

Packaged in a compact 484-ball UBGA (19x19mm) footprint, the 5CSEBA5U19C7SN offers an optimal balance of I/O density, thermal performance, and board space efficiency for space-constrained designs.

Applications: Industrial automation, motor control, communications infrastructure, automotive systems, aerospace instrumentation, embedded vision processing, protocol bridging, and real-time control systems requiring both hard processor and FPGA resources.

• 5CSEBA5U19C7SN.pdf
