Altera 5CSEMA6U23I7N

Altera 5CSEMA6U23I7N - Cyclone V SE SoC FPGA

The 5CSEMA6U23I7N is a high-performance System-on-Chip (SoC) FPGA from Altera's Cyclone V SE family, combining 110K logic elements with a dual ARM Cortex-A9 MPCore processor running at 800MHz. This powerful device is engineered for demanding embedded applications in industrial, automotive, aerospace, and communications sectors.

Key Features

• 110,000 Logic Elements - Extensive programmable logic for complex designs
• Dual ARM Cortex-A9 MPCore with CoreSight - High-performance processing at 800MHz
• 64KB On-Chip RAM - Fast embedded memory
• Rich Connectivity - CANbus, Ethernet, I2C, SPI, UART/USART, USB OTG, MMC/SD/SDIO
• Industrial Temperature Range - Operates reliably from -40°C to 100°C (TJ)

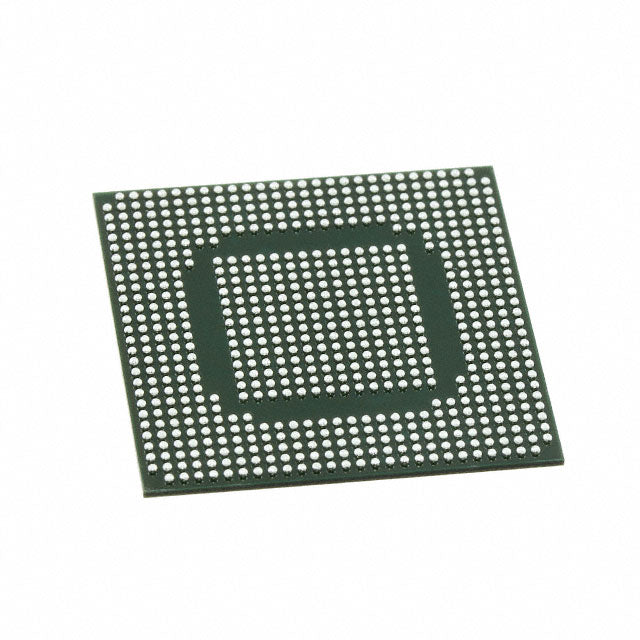

• Compact 672-UBGA Package - 23x23mm footprint for space-constrained designs

Applications

Ideal for motor control, industrial automation, embedded vision, protocol bridging, and edge computing applications requiring both FPGA flexibility and processor performance.

All specifications are from official Altera documentation. RoHS compliant. Authentic components with full traceability.

• 5CSEMA6U23I7N.pdf
