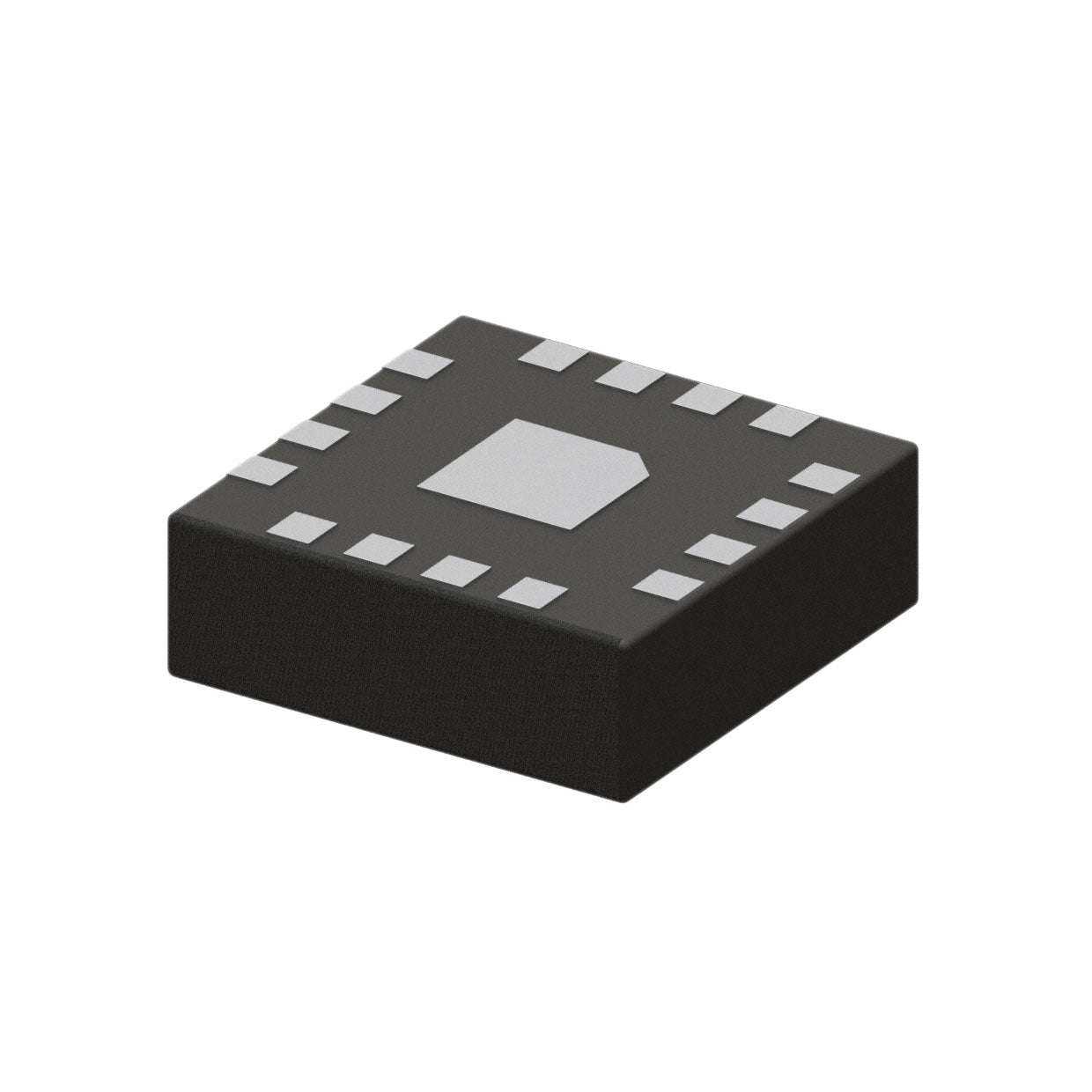

Renesas Electronics Corporation 5P49EE515NDGI
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | VersaClock® |
| Packaging | | |
| Type | - |
| PLL | No |
| Input | Crystal |
| Output | LVCMOS, LVTTL |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:5 |
| Differential - Input:Output | No/No |
| Frequency - Max | 120MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 1.71V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (3x3) |
| ROHS |  |
The Renesas 5P49EE515NDGI is a straightforward clock generator IC, ideal for applications requiring a simple, reliable clock source. With one circuit supporting up to 120MHz, it takes a crystal input and outputs LVCMOS/LVTTL signals. Its compact 20-VFQFN package and wide temperature range make it suitable for consumer, industrial, and networking applications.
- Simple Architecture: No PLL, reducing complexity and power consumption for basic clocking needs.
- Compact Package: 20-VFQFN footprint saves PCB space in space-constrained designs.
- Wide Temperature Range: -40°C to 85°C operation for industrial environments.
- Standard Outputs: LVCMOS/LVTTL outputs ensure compatibility with most digital ICs.
Consumer Electronics Timing
Generate reference clocks for microcontrollers and audio codecs in consumer devices, using the crystal input for accurate frequency generation.
Embedded System Clocking
Provide stable LVCMOS clocks to sensors and ADCs in embedded systems, ensuring reliable data acquisition.
Networking Equipment
Clock low-speed management interfaces and PHYs in networking gear, with the compact VFQFN package saving board space.
Industrial Control
Supply timing signals for PLCs and motor controllers, operating reliably across the industrial temperature range.
Test and Measurement
Generate precise clock references for benchtop instruments, leveraging the crystal input for high accuracy.
- Q: What type of device is the 5P49EE515NDGI?
- A: It is a clock generator IC from Renesas, designed for low-frequency timing applications.
- Q: Does the 5P49EE515NDGI have a PLL?
- A: No, this device does not include a PLL, making it a simple clock generator.
- Q: What are the input and output types?
- A: It accepts a Crystal input and provides LVCMOS and LVTTL outputs.
- Q: How many circuits and what is the max frequency?
- A: It has 1 circuit and supports a maximum frequency of 120MHz.
- Q: What is the package and temperature range?
- A: It comes in a 20-VFQFN Exposed Pad package and operates from -40°C to 85°C.
