Renesas Electronics Corporation 5P50902NBGI
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.03 | $3.03 |
| 15+ | $2.93 | $43.95 |
| 25+ | $2.87 | $71.75 |
| 50+ | $2.71 | $135.50 |
| 100+ | $2.39 | $239.00 |
| N+ | $0.48 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Type | - |
| PLL | Yes |
| Input | Clock |
| Output | Clock |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/No |
| Frequency - Max | 50MHz |
| Divider/Multiplier | No/No |
| Voltage - Supply | 1.7V ~ 3.63V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

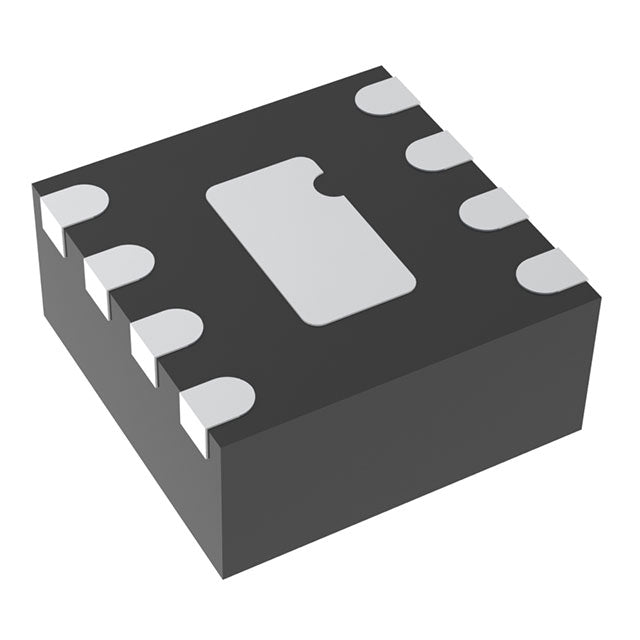

| Package / Case | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x2) |
| ROHS |  |
The Renesas 5P50902NBGI is a Clock Generator IC featuring an integrated PLL, delivering a stable 50MHz output clock. With a single circuit and clock input/output, it offers a compact, efficient timing solution. Packaged in an 8-VFDFN, it operates from -40°C to 85°C, suitable for networking, industrial, and consumer electronics.
- High-Frequency Output: 50MHz clock generation for high-speed digital systems.
- Integrated PLL: Ensures low jitter and precise frequency locking.
- Small Form Factor: 8-VFDFN package minimizes PCB area.
- Industrial Temperature Range: Reliable from -40°C to 85°C.
High-Speed Networking
Generate 50MHz reference clocks for Gigabit Ethernet PHYs and switches, ensuring low-latency data transfer.
FPGA Clocking
Provide a stable clock source for FPGAs in prototyping and production systems requiring 50MHz operation.
Broadcast Video Equipment
Synchronize video processing chips in cameras and switchers with a precise 50MHz pixel clock.
Automotive Infotainment
Deliver reliable timing for in-vehicle entertainment and navigation processors.
Medical Devices
Use in diagnostic imaging equipment where stable clock signals are critical for signal processing.
Data Storage Systems
Clock SSDs and RAID controllers for consistent read/write operations.
- Q: What type of device is the 5P50902NBGI?
- A: It is a Clock Generator IC from Renesas with an integrated PLL for frequency synthesis.
- Q: Does the 5P50902NBGI support a PLL?
- A: Yes, it includes a Phase-Locked Loop (PLL) for clock generation.
- Q: What are the input and output types?
- A: Both input and output types are 'Clock' signals, typically single-ended CMOS/TTL compatible.
- Q: How many circuits does it have?
- A: It has 1 circuit, providing a single clock output.
- Q: What is the maximum frequency?
- A: The device operates at a frequency of 50MHz.
- Q: What is the supply voltage and package?
- A: It operates over -40°C to 85°C and comes in an 8-VFDFN Exposed Pad package.
