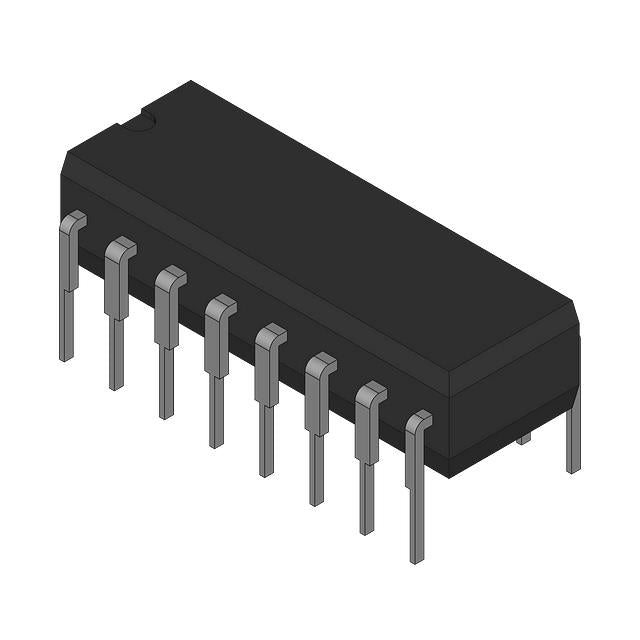

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
National Semiconductor
74174PC
Integrated Circuits & Chips
National Semiconductor
IC FF TTL/H/L SERIES, 1 FUNC, POSITIVE
74174PC
Regular price
$0.34
(Volume discounts available! Contact our customer support for customized pricing on bulk orders.Pro Tip: 🇺🇸 Switch your region to United States for localized offers.)
(Volume discounts available! Contact our customer support for customized pricing on bulk orders.Pro Tip: 🇺🇸 Switch your region to United States for localized offers.)
Regular price
$0.36
Sale price
Unit price
per
| quantity | unit price | total price |
| 1 | $0.34 | $0.34 |
| 15+ | $0.33 USD | $4.97 USD |
| 25+ | $0.32 USD | $8.10 USD |
| 50+ | $0.31 USD | $15.30 USD |
| 100+ | $0.27 USD | $27.00 USD |
| N+ | $0.18 USD | Price Inquiry |
Shipping calculated at checkout.
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | National Semiconductor |
| Product Series | |
| Packaging | Bulk | |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 6 |
| Clock Frequency | 25 MHz |
| Max Propagation Delay @ V, Max CL | 35ns @ 5V, 15pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Iq) | 65 mA |
| Input Capacitance | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-PDIP |
| Supplier Device Package | 16-DIP (0.300", 7.62mm) |
Datasheets:
74174PC
.pdf
×
