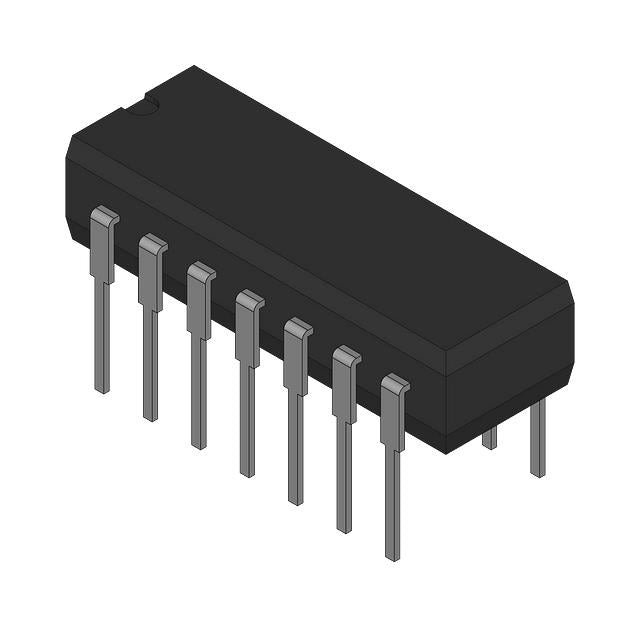

National Semiconductor 7426PC
Regular price
$0.15
Regular price
$0.16
Sale price
$0.15
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.15 | $0.15 |
| 15+ | $0.15 | $2.25 |
| 25+ | $0.14 | $3.50 |
| 50+ | $0.14 | $7.00 |
| 100+ | $0.12 | $12.00 |
| N+ | $0.02 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | National Semiconductor |
| Product Series | |
| Packaging | Bulk | |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Open Collector |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | 22 mA |
| Current - Output High, Low | 1mA, - |
| Input Logic Level - Low | - |
| Input Logic Level - High | - |
| Max Propagation Delay @ V, Max CL | - |
| Operating Temperature | 0°C ~ 70°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP |
| Supplier Device Package | 14-DIP (0.300", 7.62mm) |
7426PC.pdf
×
