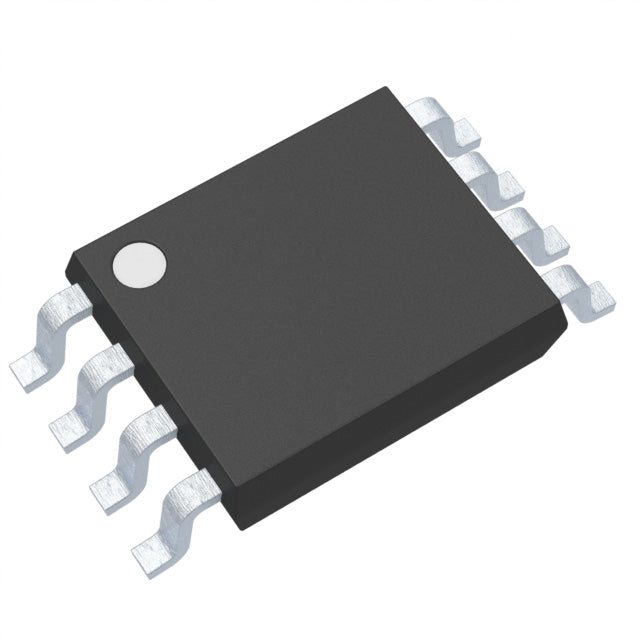

Nexperia USA Inc. 74AUP3G07DCH
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.72 | $1.72 |
| 15+ | $0.40 | $6.00 |
| 25+ | $0.39 | $9.75 |
| 50+ | $0.37 | $18.50 |
| 100+ | $0.32 | $32.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nexperia USA Inc. |
| Product Series | 74AUP |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 3 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | Open Drain |
| Current - Output High, Low | -, 4mA |
| Voltage - Supply | 0.8V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
| Supplier Device Package | 8-VSSOP |
| ROHS |  |
The 74AUP3G07DCH is a triple non-inverting buffer from Nexperia's 74AUP family, designed for ultra-low-power applications. It operates from 0.8V to 3.6V, making it one of the lowest-voltage logic ICs available. The open-drain outputs require external pull-up resistors, enabling level shifting and wired-OR configurations. Each output can sink 4mA. The 8-VFSOP package is extremely compact. Ideal for IoT, battery management, and I2C bus buffering.
- Ultra-Low Voltage (0.8V): Enables operation from single-cell batteries and low-voltage SoCs.
- Open-Drain Outputs: Facilitates level shifting and wired-OR logic without additional gates.
- Triple Channel in Tiny Package: Saves space while providing multiple buffer stages.
- Wide Temperature Range (-40°C to 125°C): Suitable for industrial and automotive environments.
Ultra-Low Power IoT Sensors
The 74AUP3G07's 0.8V operation and open-drain outputs are perfect for battery-powered IoT sensors, allowing level shifting and signal buffering with minimal power draw.
I2C Bus Buffering
Open-drain outputs are ideal for I2C and SMBus applications. This buffer can strengthen I2C signals over longer traces without violating the bus protocol.
Level Shifting in Multi-Voltage Systems
With a 0.8V to 3.6V range, it can interface between 0.9V, 1.2V, 1.8V, and 3.3V logic domains, making it versatile for complex SoC designs.
Wired-OR Logic Implementation
Open-drain outputs allow multiple buffers to be connected together for wired-OR logic, useful in interrupt lines or status flags in embedded systems.
Battery Management Systems
In battery monitoring circuits, this buffer can safely interface with protection ICs, ensuring low quiescent current and reliable operation over -40°C to 125°C.
FPGA Configuration Interfacing
Use it to buffer configuration signals between an FPGA and configuration memory, ensuring signal integrity at low voltages.
- Q: What is the logic family of 74AUP3G07DCH?
- A: It belongs to the 74AUP (Advanced Ultra-Low Power) family from Nexperia.
- Q: What is the function?
- A: Triple non-inverting buffer with open-drain outputs.
- Q: How many channels does it have?
- A: Three independent channels.
- Q: What is the output type?
- A: Open-Drain, requiring external pull-up resistors for high-level output.
- Q: What is the voltage range?
- A: 0.8V to 3.6V, supporting ultra-low voltage applications.
- Q: What is the package?
- A: 8-VFSOP (2.30mm width), a very small package.
