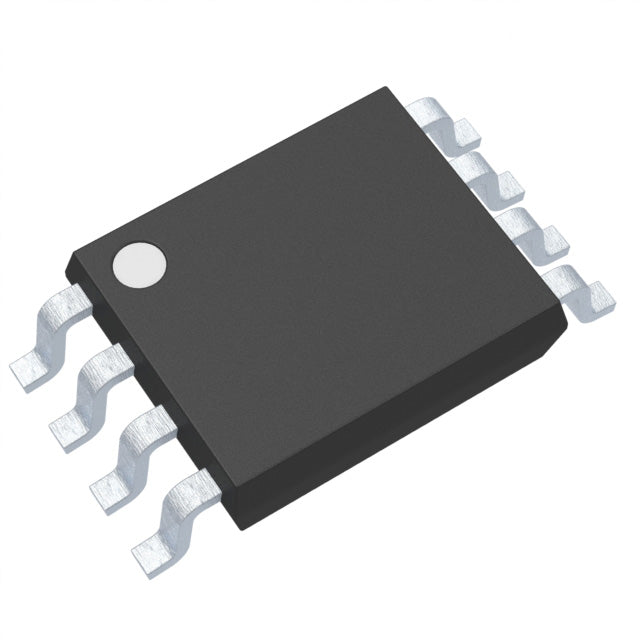

Nexperia USA Inc. 74AUP3G17DCH
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.15 | $1.15 |
| 15+ | $0.27 | $4.05 |
| 25+ | $0.26 | $6.50 |
| 50+ | $0.25 | $12.50 |
| 100+ | $0.22 | $22.00 |
| N+ | $0.04 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nexperia USA Inc. |
| Product Series | 74AUP |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 3 |
| Number of Bits per Element | 1 |
| Input Type | Schmitt Trigger |
| Output Type | Push-Pull |
| Current - Output High, Low | 4mA, 4mA |
| Voltage - Supply | 0.8V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
| Supplier Device Package | 8-VSSOP |
| ROHS |  |
The 74AUP3G17DCH is a triple non-inverting buffer from Nexperia, engineered for ultra-low-power applications. It operates from 0.8V to 3.6V, with each of its 3 channels providing 4mA push-pull drive. The tiny 8-VFSOP package makes it ideal for compact, battery-powered devices. This buffer ensures clean signal propagation while consuming minimal power, making it a top choice for portable and IoT electronics.
- Ultra-Low Voltage Operation (0.8V): Supports the latest low-power processors and energy-harvesting designs.
- Ultra-Low Power Consumption: Extends battery life in wearables and IoT devices.
- Push-Pull Outputs: Provide clean, strong signals without external pull-up resistors.
- Compact 8-VFSOP Package: Saves critical board space in miniaturized products.
Ultra-Low-Power Wearable Devices
With a supply range down to 0.8V and ultra-low quiescent current, the 74AUP3G17DCH is perfect for wearables, extending battery life while buffering sensor signals.
Signal Conditioning for MCU GPIO
Use this buffer to clean up noisy signals from switches or encoders before they reach a microcontroller's GPIO pins, ensuring reliable logic levels.
Level Shifting in Multi-Voltage Systems
Operating from 0.8V to 3.6V, it can interface between 1.2V and 3.3V logic domains, enabling communication between low-voltage processors and standard peripherals.
Driving Small Loads in Portable Electronics
Each output can source or sink 4mA, sufficient to drive small LEDs, buzzers, or the input of a power MOSFET in portable devices.
Clock Buffering in Low-Power DSPs
Buffer clock signals in battery-operated DSP or FPGA systems, maintaining signal integrity with minimal power overhead.
IoT Sensor Nodes
In IoT nodes, this buffer conditions signals from temperature, humidity, or motion sensors, ensuring accurate data acquisition at low voltages.
- Q: What is the logic family of the 74AUP3G17DCH?
- A: It belongs to the 74AUP family, which is designed for ultra-low-power and low-voltage applications.
- Q: What function does this IC perform?
- A: It is a triple buffer with non-inverting outputs, providing signal conditioning and drive strength enhancement.
- Q: How many channels does it have?
- A: It contains 3 independent buffer channels, each capable of sourcing and sinking 4mA.
- Q: What is the output type?
- A: The outputs are Push-Pull, providing strong high and low drive without external resistors.
- Q: What is the operating voltage range?
- A: It operates from 0.8V to 3.6V, making it ideal for battery-powered and low-voltage digital circuits.
- Q: What package is available?
- A: It comes in an 8-VFSOP (0.091", 2.30mm Width) package, which is very small for space-limited designs.
