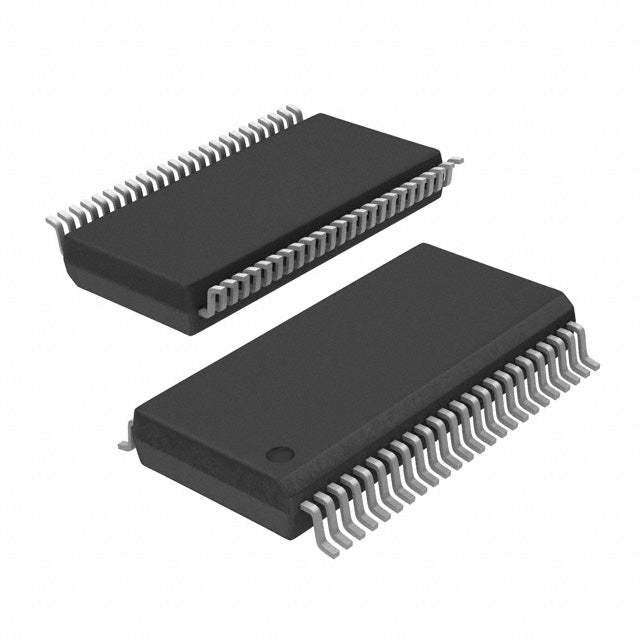

Renesas Electronics Corporation 74FCT162244ATPVG8
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.21 | $1.21 |
| 15+ | $1.17 | $17.55 |
| 25+ | $1.14 | $28.50 |
| 50+ | $1.08 | $54.00 |
| 100+ | $0.95 | $95.00 |
| N+ | $0.19 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | 74FCT |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 4 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 48-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 48-SSOP |
| ROHS |  |
The 74FCT162244ATPVG8 from Renesas Electronics is a 4-channel, non-inverting buffer with 3-State outputs. Operating from 4.5V to 5.5V, it is designed for traditional 5V logic systems. Each channel can sink or source 24mA, providing robust drive for bus lines. The 48-BSSOP package is suitable for space-efficient PCB layouts. This buffer is commonly used in microprocessor address/data buffering, industrial control interfaces, and memory expansion applications.
- 4 Channels in One Package: Saves board space compared to multiple single-channel buffers.
- 5V Operation: Directly compatible with legacy TTL and CMOS logic levels.
- 3-State Outputs: Enables bus sharing and isolation for multi-device systems.
- Industrial Temperature Range: Reliable operation from -40°C to 85°C in harsh environments.
5V Bus Drivers
With 5V operation and 24mA drive, this buffer is ideal for driving legacy 5V buses in industrial control systems.
Address/Data Line Buffering
In microprocessor systems, the 4 channels can buffer address or data lines, reducing load on the CPU and improving signal quality.
Peripheral Interface Isolation
The 3-State outputs allow peripherals to be disconnected from the bus when not in use, preventing bus contention.
Industrial PLC I/O Modules
Its wide temperature range (-40°C to 85°C) and 5V compatibility make it suitable for programmable logic controllers in factory automation.
Memory Expansion Boards
When adding memory to a 5V system, this buffer ensures clean signal distribution to multiple memory chips.
- Q: What is the logic family of the 74FCT162244ATPVG8?
- A: It belongs to the 74FCT logic family, offering high-speed, low-power performance.
- Q: What is the function of this IC?
- A: It is a 4-channel, non-inverting buffer with 3-State outputs for bus-oriented applications.
- Q: How many channels does it have?
- A: It has 4 channels, allowing buffering of multiple signals in parallel.
- Q: What is the output type?
- A: The outputs are 3-State, providing high-impedance control for shared buses.
- Q: What is the operating voltage range?
- A: It operates from 4.5V to 5.5V, making it suitable for standard 5V logic systems.
- Q: What package is available?
- A: It is available in a 48-BSSOP (0.295", 7.50mm Width) package.
