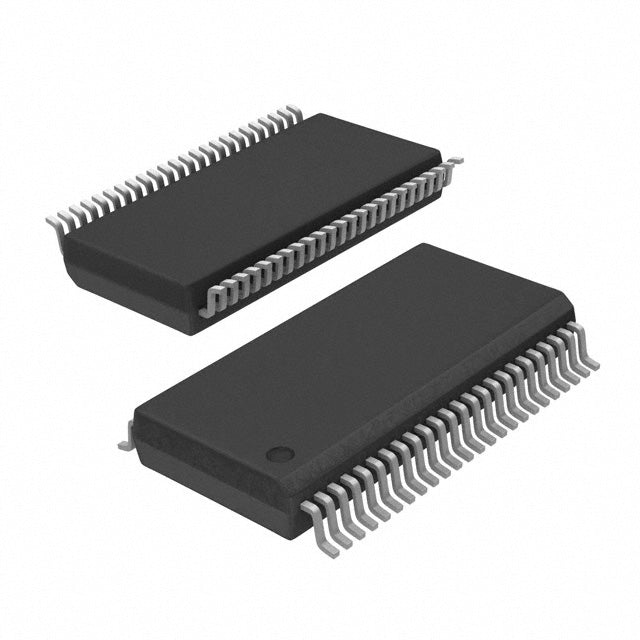

IDT, Integrated Device Technology Inc 74FCT162244CTPVG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.72 | $4.72 |
| 15+ | $1.09 | $16.35 |
| 25+ | $1.06 | $26.50 |
| 50+ | $1.00 | $50.00 |
| 100+ | $0.89 | $89.00 |
| N+ | $0.18 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | IDT, Integrated Device Technology Inc |
| Product Series | 74FCT |
| Packaging | Bulk | |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 4 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 48-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 48-SSOP |
| ROHS |  |
The 74FCT162244CTPVG is a 16-bit non-inverting buffer from IDT, organized as 4 channels of 4 bits. It operates from 4.5V to 5.5V and provides 3-State outputs with a balanced drive capability of 24mA sink and 24mA source. This makes it suitable for memory address buffering, peripheral driving, and general-purpose bus isolation in 5V systems.
- Balanced Drive (24mA Sink/Source): Provides consistent performance for both high and low signal levels.
- 3-State Outputs: Enables bus isolation and multiplexing, improving system flexibility.
- Wide Operating Temperature: Rated for -40°C to +85°C, suitable for industrial and automotive use.
- Compact 48-BSSOP Package: Saves board space in dense designs.
Memory Address Buffering
Buffers address lines from a CPU to multiple memory banks, providing the necessary drive current (24mA) and isolation.
Peripheral Device Drivers
Drives peripheral devices like LEDs or relays that require more current than a microcontroller can provide directly.
Bus Isolation
Use the 3-State feature to isolate sections of a bus during system testing or power-down sequences.
Industrial Sensor Interfacing
Buffers signals from industrial sensors to a PLC or controller, ensuring signal integrity over long cable runs.
FPGA Configuration
Buffers configuration data and control signals to an FPGA during the boot-up process.
Automotive Body Electronics
In automotive body control modules, it can buffer control signals for lights, motors, and switches, operating over the -40°C to +85°C range.
- Q: What is the logic family of the 74FCT162244CTPVG?
- A: It is from the 74FCT (Fast CMOS TTL-compatible) logic family.
- Q: What is the function of this IC?
- A: It is a non-inverting buffer with 3-State outputs.
- Q: How many channels does it have?
- A: It has 4 channels, each handling 4 bits (16-bit total).
- Q: What is the output type?
- A: The outputs are 3-State, allowing for bus connection.
- Q: What is the operating voltage range?
- A: It operates from 4.5V to 5.5V.
- Q: What package is available?
- A: It is available in a 48-BSSOP (0.295", 7.50mm Width) package.
