Renesas Electronics Corporation 74FCT162244CTPVG8
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.72 | $4.72 |
| 15+ | $1.35 | $20.25 |
| 25+ | $1.32 | $33.00 |
| 50+ | $1.25 | $62.50 |
| 100+ | $1.10 | $110.00 |
| N+ | $0.22 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | 74FCT |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Obsolete |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 4 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

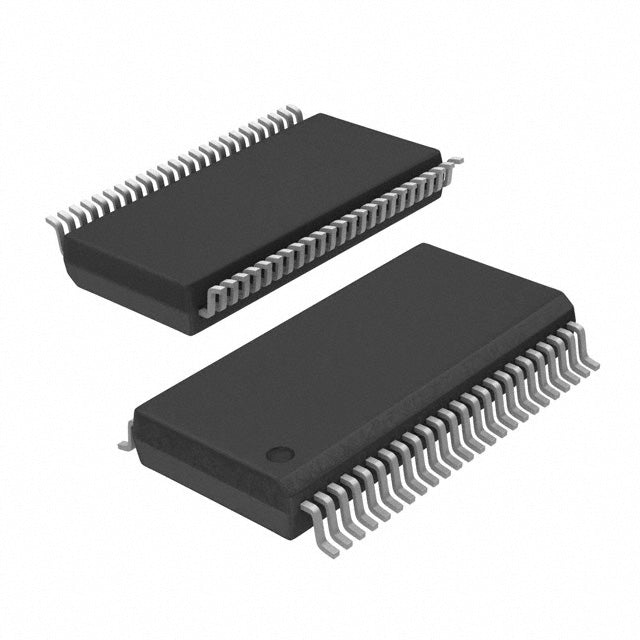

| Package / Case | 48-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 48-SSOP |
| ROHS |  |
The 74FCT162244CTPVG8 is a high-performance non-inverting buffer from IDT, designed for 5V systems. It features 4 channels with 3-State outputs, capable of sourcing and sinking 24mA. Operating from 4.5V to 5.5V, it is ideal for bus interfacing, memory buffering, and industrial control applications. The 48-BSSOP package offers a compact solution for space-constrained designs.
- High Drive Current (24mA): Ensures reliable signal transmission to heavily loaded buses and multiple fan-out nodes.
- 3-State Outputs: Allows multiple devices to share a common bus without contention, simplifying system design.
- Wide 4.5V to 5.5V Supply Range: Directly compatible with standard 5V TTL logic, reducing the need for level shifters.
- 4 Channels in One Package: Saves board space and reduces component count compared to discrete buffer solutions.
High-Density Bus Interfacing
With 4 channels and 3-State outputs, this buffer is ideal for driving high-capacitance data buses in networking equipment, ensuring signal integrity over longer traces.
Memory Address Buffering
In server and workstation motherboards, the 74FCT162244CTPVG8 buffers address lines between the memory controller and DRAM modules, reducing loading and improving timing margins.
5V TTL Level Shifting
Operating at 4.5V to 5.5V, it interfaces directly with 5V TTL logic, making it perfect for legacy system integration where 5V compatibility is required.
Industrial Control I/O Expansion
In PLCs and industrial controllers, this buffer drives multiple indicator LEDs or relays through its 24mA output capability, providing robust signal drive in noisy environments.
Telecom Line Card Drivers
For telecom infrastructure, the buffer isolates and drives control signals to line interface units, preventing backplane noise from corrupting sensitive logic.
Test and Measurement Equipment
In ATE systems, the 3-State outputs allow multiple instruments to share a common test bus, with the buffer providing necessary isolation and drive strength.
- Q: What is the logic family of the 74FCT162244CTPVG8?
- A: It belongs to the 74FCT logic family, known for high-speed, low-power operation.
- Q: What is the function of this IC?
- A: It is a non-inverting buffer with 4 channels, ideal for signal buffering and fan-out.
- Q: What output type does it feature?
- A: It features 3-State outputs, allowing connection to shared buses.
- Q: What is the supply voltage range?
- A: It operates from 4.5V to 5.5V, making it suitable for 5V systems.
- Q: What is the output current capability?
- A: It can source and sink 24mA, providing good drive strength for loads.
- Q: What package is available?
- A: It comes in a 48-BSSOP (0.295", 7.50mm Width) package.
