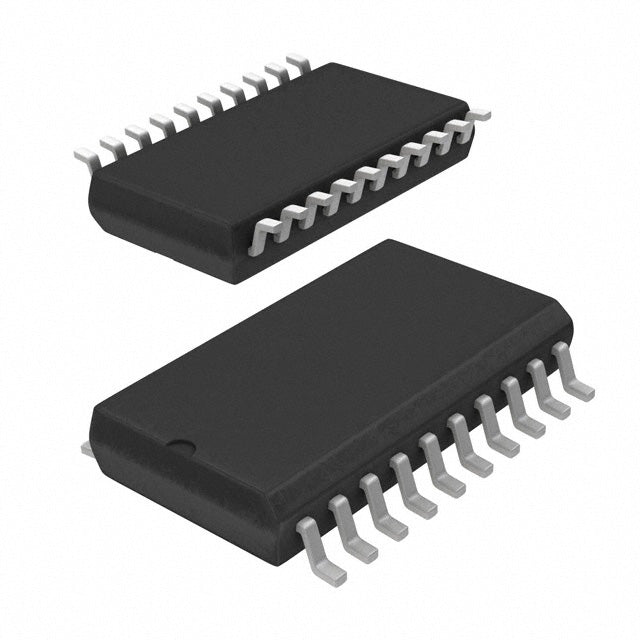

Renesas Electronics Corporation 74FCT2244ATSOG
Regular price
$3.88
Regular price
$0.48
Sale price
$3.88
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.88 | $3.88 |
| 15+ | $0.44 | $6.60 |
| 25+ | $0.43 | $10.75 |
| 50+ | $0.41 | $20.50 |
| 100+ | $0.36 | $36.00 |
| N+ | $0.07 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | 74FCT |
| Packaging | Tube | |
| Part Status | Obsolete |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 15mA, 12mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| ROHS |  |
The 74FCT2244ATSOG is a dual-channel non-inverting buffer from the 74FCT family. It operates at 4.75V to 5.25V with 3-State outputs and 15mA/12mA drive capability. The 20-SOIC package makes it suitable for space-constrained 5V systems requiring signal buffering and isolation.
- Dual-Channel Design: Buffers two independent signal paths in one package.
- 3-State Outputs: Provides bus isolation when needed.
- High Drive Current: 15mA/12mA for driving capacitive loads.
- Fast 74FCT Propagation: Minimizes signal delay.
Memory Address Buffering
The 74FCT2244ATSOG buffers address lines between CPU and memory, reducing loading on the processor.
Peripheral Driver
15mA/12mA drive can directly control LEDs or small relays in industrial panels.
Bus Isolation in Multi-Processor Systems
3-State outputs allow disconnecting unused processors from the bus.
Signal Fan-Out
Distributes a single clock or control signal to multiple loads without degradation.
Test Equipment Channel Expansion
Buffers test signals to multiple measurement points.
Automotive Body Control Modules
5V buffering for sensor inputs in vehicle electronics.
- Q: What is the logic family?
- A: 74FCT, high-speed 5V logic.
- Q: What is the function?
- A: Non-inverting buffer with 3-State outputs.
- Q: How many channels?
- A: 2 channels (each 4-bit).
- Q: What is the output type?
- A: 3-State for bus isolation.
- Q: Voltage range?
- A: 4.75V to 5.25V.
- Q: Package?
- A: 20-SOIC (0.295", 7.50mm Width).
Base Product Number ：
74FCT2244AT
74FCT2244ATSOG.pdf
