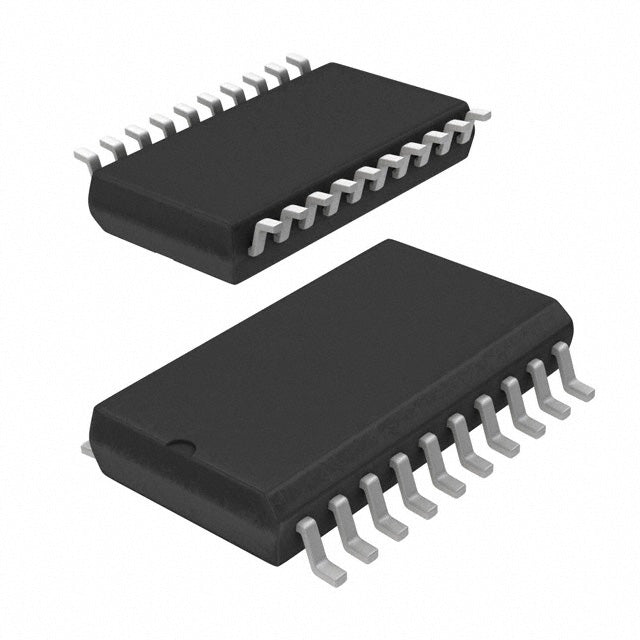

Renesas Electronics Corporation 74FCT2245ATSOG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.88 | $3.88 |
| 15+ | $0.44 | $6.60 |
| 25+ | $0.43 | $10.75 |
| 50+ | $0.41 | $20.50 |
| 100+ | $0.36 | $36.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | 74FCT |
| Packaging | Tube | |
| Part Status | Obsolete |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 15mA, 12mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| ROHS |  |
The 74FCT2245ATSOG is a high-speed non-inverting transceiver from IDT's 74FCT family. It operates at 4.75V to 5.25V with 15mA/12mA output drive and 3-State outputs. Housed in a 20-SOIC package, it is designed for high-performance bus interfacing in 5V systems.
- High-Speed 74FCT Technology: Low propagation delay for critical timing applications.
- 3-State Outputs: Enables multiple devices on a shared bus.
- 5V Operation: Compatible with legacy TTL systems.
- Industrial Temperature Range: Reliable in harsh environments.
High-Speed Bus Transceivers
With 15mA/12mA drive, the 74FCT2245ATSOG handles fast data transfer between buses in telecom and networking equipment.
Server Motherboard Communication
Low propagation delay and 3-State outputs enable efficient CPU-to-memory data paths.
Industrial Automation I/O
5V operation and robust drive capability suit PLC backplane communication.
Test & Measurement Equipment
Precise timing and high-speed switching make it ideal for signal routing in ATE systems.
Data Acquisition Systems
Buffers analog-to-digital converter outputs to the processing unit without signal loss.
Networking Switches
Reliable 5V transceiving for control plane data transfer.
- Q: What logic family is the 74FCT2245ATSOG?
- A: It belongs to the 74FCT family, optimized for high-speed 5V systems.
- Q: What is the function?
- A: Non-inverting transceiver with 3-State outputs.
- Q: How many channels?
- A: 1 channel (8-bit bus).
- Q: What is the output type?
- A: 3-State for bus sharing.
- Q: What is the voltage range?
- A: 4.75V to 5.25V.
- Q: What package?
- A: 20-SOIC (0.295", 7.50mm Width).
