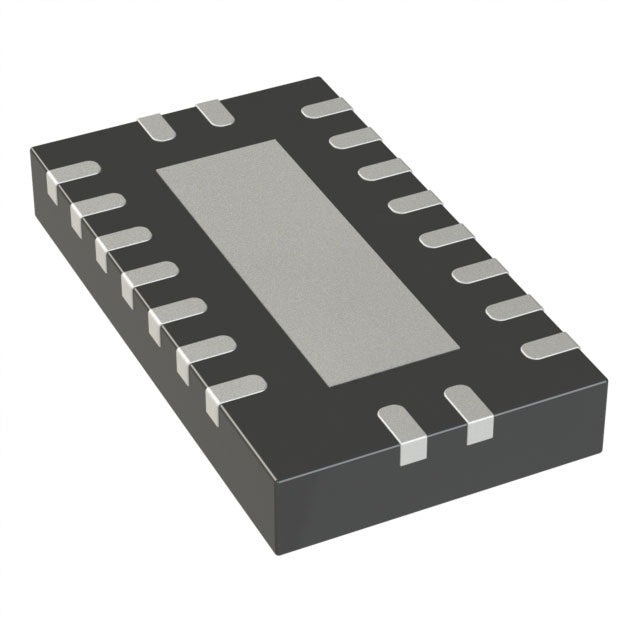

Nexperia USA Inc. 74LVC245ABQ,115
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.31 | $0.31 |
| 15+ | $0.30 | $4.50 |
| 25+ | $0.30 | $7.50 |
| 50+ | $0.28 | $14.00 |
| 100+ | $0.25 | $25.00 |
| N+ | $0.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nexperia USA Inc. |
| Product Series | 74LVC |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.2V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-DHVQFN (4.5x2.5) |
The 74LVC245ABQ from Nexperia is an octal bidirectional transceiver designed for low-voltage systems. It operates from 1.2V to 3.6V, making it ideal for 1.8V and 2.5V applications. With 8 channels and 3-state outputs, it supports bidirectional data transfer on shared buses. The 74LVC family ensures high speed and low power consumption. It offers a drive capability of 24mA, suitable for moderate loads. The 20-VFQFN package with exposed pad provides excellent thermal performance. This transceiver is commonly used in mobile devices, FPGAs, and low-power industrial systems.
- Low-Voltage Operation (1.2V-3.6V): Ideal for modern low-power electronics, reducing energy consumption.
- Bidirectional Data Transfer: Supports data flow in both directions, simplifying bus design.
- Exposed Pad for Thermal Management: Enhances heat dissipation in high-density applications.
- 24mA Drive Capability: Provides sufficient current for driving multiple loads on a bus.
Low-Voltage Data Bus for Mobile Devices
The 74LVC245ABQ is ideal for 1.8V and 2.5V data buses in smartphones and tablets. Its low-voltage operation reduces power consumption while maintaining high-speed data transfer.
Level Shifting Between 1.8V and 3.3V
With a supply range of 1.2V to 3.6V, this transceiver can interface between 1.8V and 3.3V logic domains, making it perfect for mixed-voltage systems.
Memory Interface Buffering
In embedded systems, this transceiver can buffer address and data lines between a low-voltage processor and external memory, ensuring signal integrity.
FPGA Configuration and I/O Expansion
Use this transceiver to expand the I/O capabilities of an FPGA, providing bidirectional data transfer between the FPGA and external peripherals.
Battery-Powered Industrial Sensors
For low-power industrial sensors, this transceiver provides reliable data transfer at 1.8V or 2.5V, extending battery life in remote monitoring systems.
High-Density PCB Designs
The 20-VFQFN package with exposed pad is ideal for high-density PCBs, offering excellent thermal dissipation and a small footprint.
- Q: What logic family does the 74LVC245ABQ belong to?
- A: It is part of the 74LVC family, which is low-voltage CMOS logic with high speed.
- Q: What is the function of this IC?
- A: It is an octal (8-bit) non-inverting transceiver for bidirectional data transfer.
- Q: How many channels does it have?
- A: It has 8 channels, suitable for parallel data buses.
- Q: What is the output type?
- A: The outputs are 3-state, allowing for bus sharing and bidirectional operation.
- Q: What is the operating voltage range?
- A: It operates from 1.2V to 3.6V, optimized for low-voltage systems.
- Q: What package is available?
- A: It comes in a 20-VFQFN package with an exposed pad for improved thermal performance.
