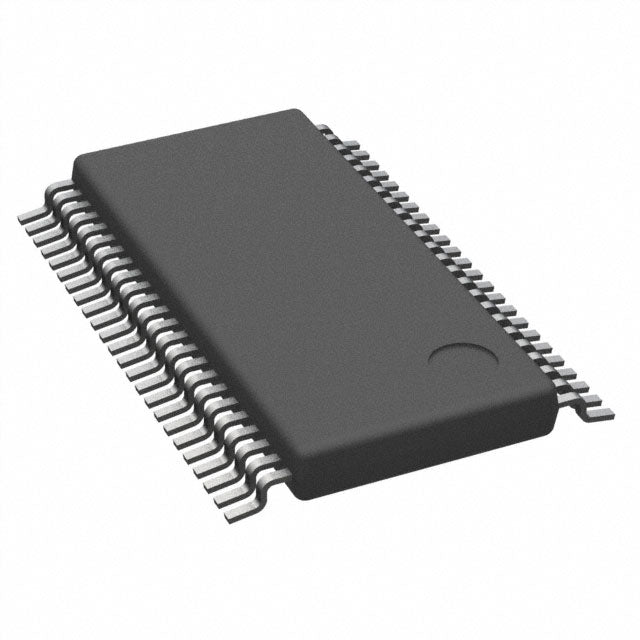

Nexperia USA Inc. 74LVCH162245ADGVJ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.00 | $1.00 |
| 15+ | $0.97 | $14.55 |
| 25+ | $0.95 | $23.75 |
| 50+ | $0.89 | $44.50 |
| 100+ | $0.79 | $79.00 |
| N+ | $0.16 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nexperia USA Inc. |
| Product Series | 74LVCH |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 12mA, 12mA |
| Voltage - Supply | 1.2V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 48-TFSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 48-TSSOP |
| ROHS |  |
The 74LVCH162245ADGVJ from Nexperia is a low-voltage non-inverting transceiver, part of the 74LVCH family. It features two channels with 3-State outputs, supporting bidirectional data flow. Operating from 1.2V to 3.6V, it is ideal for power-sensitive applications like portable electronics and industrial sensors. The 48-TFSOP package offers a compact footprint for space-constrained designs.
- Low-Voltage Operation (1.2V-3.6V): Reduces power consumption, extending battery life in portable devices.
- Bidirectional Capability: Simplifies bus design by allowing data flow in both directions with a single IC.
- Wide Temperature Range (-40°C to 125°C): Suitable for harsh automotive and industrial environments.
- 3-State Outputs: Enables multiple devices to share a bus without interference.
Bidirectional Bus Transceivers
In mixed-voltage systems, this transceiver allows bidirectional data transfer between 1.8V and 3.3V logic, ideal for FPGA and CPLD interfacing.
Level Shifting in Portable Devices
With a 1.2V to 3.6V range, it enables seamless level shifting in battery-powered devices like smartphones and tablets, preserving battery life.
Memory Card Interfacing
For SD or eMMC interfaces, the 74LVCH162245ADGVJ buffers address and data lines, ensuring signal integrity at high speeds.
Industrial Sensor Networks
In industrial IoT sensors, this transceiver handles communication between low-voltage sensors and central controllers, operating reliably up to 125°C.
Server and Networking Equipment
In networking switches, it facilitates data transfer between different voltage domains on the same PCB, reducing power consumption.
Automotive Infotainment Systems
With a wide temperature range, it supports automotive infotainment modules, buffering signals between processors and peripherals.
- Q: What is the logic family of the 74LVCH162245ADGVJ?
- A: It is from the 74LVCH family, known for low-voltage and high-speed operation.
- Q: What is the function of this IC?
- A: It is a non-inverting transceiver with 2 channels, enabling bidirectional data flow.
- Q: What is the output type?
- A: It has 3-State outputs for bus-oriented applications.
- Q: What is the operating voltage range?
- A: It operates from 1.2V to 3.6V, supporting low-power designs.
- Q: What is the output current capability?
- A: It can source and sink 12mA, suitable for moderate drive requirements.
- Q: What package is available?
- A: It comes in a 48-TFSOP (0.173", 4.40mm Width) package.
