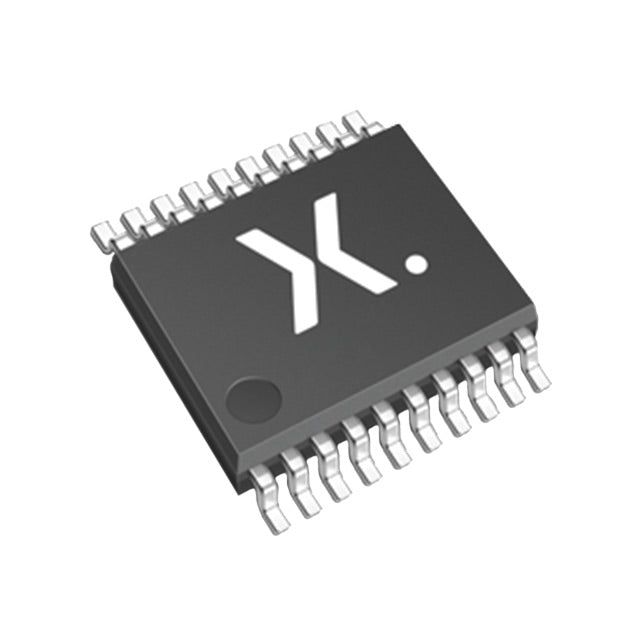

Nexperia USA Inc. 74LVCH245APW-Q100J
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.84 | $0.84 |
| 15+ | $0.19 | $2.85 |
| 25+ | $0.19 | $4.75 |
| 50+ | $0.18 | $9.00 |
| 100+ | $0.16 | $16.00 |
| N+ | $0.03 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nexperia USA Inc. |
| Product Series | 74LVCH |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.2V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| ROHS |  |
The 74LVCH245APW-Q100J is an 8-bit non-inverting transceiver from Nexperia, designed for bidirectional bus communication in low-voltage systems. Operating from 1.2V to 3.6V, it provides 24mA output drive capability, ensuring robust signal transmission. The 3-State outputs allow for bus sharing and isolation, while the AEC-Q100 qualification guarantees automotive-grade reliability. Housed in a 20-TSSOP package, this IC is ideal for automotive, industrial, and portable applications requiring high-speed, low-power data transfer.
- Wide 1.2V to 3.6V Supply Range: Supports low-voltage processors and memory, reducing power consumption.
- 24mA Output Drive: Ensures reliable bus communication even with multiple loads.
- 3-State Outputs: Enables bus multiplexing and isolation for multi-device systems.
- AEC-Q100 Qualified: Meets automotive reliability and temperature standards.
- Industry-Standard TSSOP Package: Easy to manufacture and integrate.
Automotive Body Control Module Communication
In body control modules (BCMs), the 74LVCH245APW-Q100J facilitates communication between the central processor and various peripherals like window motors or light controllers. Its low-voltage operation (1.2V-3.6V) matches modern automotive MCUs, while the 3-State outputs prevent bus conflicts.
Portable Consumer Electronics Data Bus
For smartphones, tablets, and wearables, this transceiver enables efficient data routing between application processors and memory or sensors. The 24mA drive ensures signal integrity over short PCB traces, and the low voltage reduces power consumption.
Level Translation in Multi-Voltage Designs
When mixing 1.8V and 3.3V logic, this transceiver can act as a bidirectional level shifter. Its non-inverting architecture preserves data polarity, simplifying firmware and hardware design.
Industrial Sensor Data Aggregation
In industrial IoT gateways, multiple sensors often share a data bus. The 74LVCH245APW-Q100J buffers and routes sensor data to the main controller, with 3-State outputs allowing individual sensor isolation for diagnostics.
Telecommunications Line Card Interface
In networking equipment, this transceiver interfaces between line card processors and backplane buses. The high-speed 74LVCH family ensures low propagation delay, critical for maintaining data throughput.
Battery Management System (BMS) Communication
In electric vehicle BMS, this IC enables communication between cell monitoring units and the main BMS controller. The wide temperature range (-40°C to 125°C) and automotive qualification ensure reliable operation in demanding thermal conditions.
- Q: What is the logic family of the 74LVCH245APW-Q100J?
- A: It belongs to the 74LVCH family, which provides low-voltage operation with high-speed switching.
- Q: What is the function of this IC?
- A: It is an 8-bit (1 channel) non-inverting transceiver with 3-State outputs, enabling bidirectional data transfer.
- Q: What is the operating voltage range?
- A: It operates from 1.2V to 3.6V, suitable for low-power and portable electronics.
- Q: What is the output current capability?
- A: It can source or sink 24mA per channel, providing robust drive for bus lines.
- Q: What package is available?
- A: It comes in a 20-TSSOP package with a width of 4.40mm, a common and easy-to-solder format.
- Q: Is this component automotive qualified?
- A: Yes, the -Q100 suffix indicates AEC-Q100 qualification for automotive applications.
