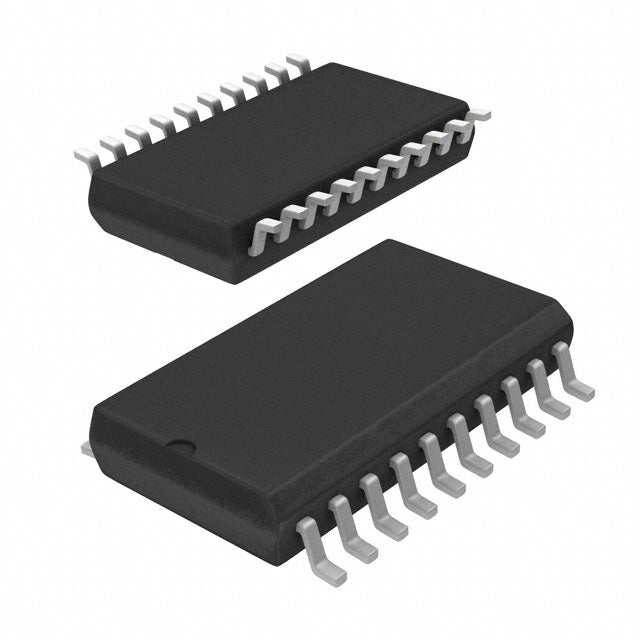

Nexperia USA Inc. 74LVT241D,118
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.17 | $1.17 |
| 15+ | $0.27 | $4.05 |
| 25+ | $0.26 | $6.50 |
| 50+ | $0.25 | $12.50 |
| 100+ | $0.22 | $22.00 |
| N+ | $0.04 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nexperia USA Inc. |
| Product Series | 74LVT |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 32mA, 64mA |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SO |
The 74LVT241D,118 is a dual 4-bit buffer from Nexperia, designed for 3.3V systems. It features non-inverting, 3-State outputs and 8 buffer circuits. With 32mA source and 64mA sink current, it provides exceptional drive strength. The 74LVT family combines BiCMOS speed with TTL-compatible inputs, making it ideal for high-performance bus buffering. Typical applications include memory address driving, backplane interfacing, and server peripherals.
- Exceptional Drive Current (32mA/64mA): Drives high-capacitance buses and long traces without signal degradation.
- TTL-Compatible Inputs: Allows direct interface with 5V TTL logic, simplifying mixed-voltage designs.
- High-Speed BiCMOS Technology: Provides fast propagation delays for high-frequency operation.
- 3-State Outputs: Enables bus sharing and prevents contention in multi-master systems.
High-Drive 3.3V Bus Buffering
Use the 74LVT241D,118 to buffer address or data lines in 3.3V systems. Its 32mA source and 64mA sink capability drives heavily loaded buses with ease.
Memory Address Driving
In memory systems, this buffer provides the necessary drive current for address lines, ensuring reliable access to SRAM or DRAM devices.
Backplane and Card Edge Interfacing
For telecom and networking equipment, this buffer drives signals across backplanes, overcoming capacitance and maintaining signal integrity.
Mixed 3.3V/5V Systems
With TTL-compatible inputs, it can accept 5V logic levels while operating from a 3.3V supply, simplifying mixed-voltage designs.
Server and Computing Peripherals
In servers, it buffers control and data signals between chipsets and peripheral controllers, ensuring high-speed, reliable operation.
Industrial Control Modules
Use it in industrial I/O modules to buffer signals to and from field devices, providing robust drive and 3-State isolation.
- Q: What is the logic family of the 74LVT241D,118?
- A: It belongs to the 74LVT (Low-Voltage BiCMOS TTL) family, combining high speed with TTL compatibility.
- Q: What is the function of this IC?
- A: It is a dual 4-bit buffer with non-inverting outputs, providing signal buffering and driving.
- Q: How many channels does it have?
- A: It has 2 channels (2 x 4-bit), totaling 8 buffer circuits.
- Q: What is the output type?
- A: The outputs are 3-State, allowing for bus isolation and multiplexing.
- Q: What is the operating voltage range?
- A: It operates from 2.7V to 3.6V, ideal for 3.3V systems.
- Q: What package is available?
- A: It comes in a 20-SOIC (7.50mm width) package.
