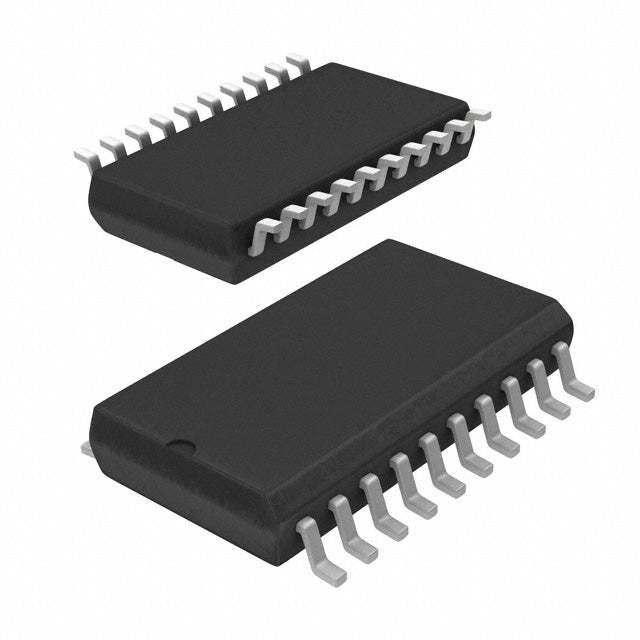

Nexperia USA Inc. 74LVT245BD,118
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.20 | $1.20 |
| 15+ | $0.28 | $4.20 |
| 25+ | $0.27 | $6.75 |
| 50+ | $0.26 | $13.00 |
| 100+ | $0.23 | $23.00 |
| N+ | $0.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nexperia USA Inc. |
| Product Series | 74LVT |
| Packaging | Bulk | |
| Part Status | Active |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 32mA, 64mA |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SO |
The 74LVT245BD,118 from Nexperia is an octal non-inverting transceiver designed for bidirectional data communication. Operating from 2.7V to 3.6V, it is optimized for 3.3V systems requiring high-speed data transfer. With 3-State outputs and a robust drive capability of 32mA sink and 64mA source, it ensures reliable signal integrity on busy buses. The 20-SOIC package is suitable for standard PCB layouts. This transceiver is widely used in memory interfacing, backplane communication, and industrial control systems.
- Bidirectional Data Flow: Simplifies bus design by allowing data transfer in both directions with a single IC.
- High Drive Current (64mA Source): Ensures fast data rates and reliable operation on heavily loaded buses.
- 3-State Outputs: Enables multiple devices to share the same bus without conflict.
- Wide Temperature Range (-40°C to 85°C): Suitable for industrial and automotive environments.
Bidirectional Bus Transceivers
The 74LVT245BD,118 is perfect for connecting two bidirectional data buses, such as between a microcontroller and memory or between two processors. The direction control pin allows data flow in either direction, and the 3-State outputs enable bus isolation.
Memory Data Bus Buffering
In high-speed memory systems, this transceiver buffers the data bus between the memory controller and DRAM. The high drive current (64mA source) ensures fast data transfer rates and maintains signal integrity on heavily loaded buses.
Backplane Interfacing in Telecom
For telecom backplanes, this IC can drive data signals across long traces to multiple line cards. The 3-State outputs are essential for allowing multiple cards to communicate over a shared bus.
Level Shifting in Mixed-Voltage Systems
With a 2.7V to 3.6V supply, it can interface between 3.3V and 2.7V logic domains. This is useful in systems where older 2.7V components need to communicate with newer 3.3V processors.
Industrial Control Data Acquisition
In PLCs and industrial controllers, this transceiver can buffer data between the CPU and I/O modules. Its robust drive capability and wide temperature range (-40°C to 85°C) ensure reliable operation in factory settings.
Server Motherboard Chipset Communication
In server motherboards, the 74LVT245BD,118 can be used to buffer communication between the chipset and various peripherals. The bidirectional capability simplifies routing and reduces component count.
- Q: What is the logic family of the 74LVT245BD?
- A: It belongs to the 74LVT family, designed for low-voltage, high-speed bidirectional communication.
- Q: What is the function of this IC?
- A: It is an octal (8-bit) non-inverting transceiver, allowing bidirectional data flow.
- Q: What is the operating voltage range?
- A: It operates from 2.7V to 3.6V, ideal for 3.3V systems.
- Q: What is the output type?
- A: It features 3-State outputs for bus-oriented applications.
- Q: What is the package type?
- A: It comes in a 20-SOIC (7.50mm width) package.
- Q: What is the output current capability?
- A: It can sink 32mA and source 64mA.
