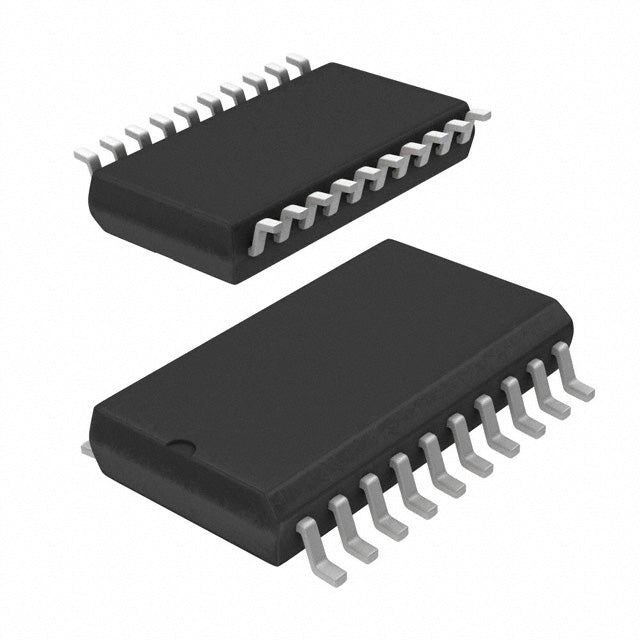

Nexperia USA Inc. 74LVTH244AD,118
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.09 | $1.09 |
| 15+ | $0.25 | $3.75 |
| 25+ | $0.24 | $6.00 |
| 50+ | $0.23 | $11.50 |
| 100+ | $0.20 | $20.00 |
| N+ | $0.04 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nexperia USA Inc. |
| Product Series | 74LVTH |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 32mA, 64mA |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SO |
The 74LVTH244AD,118 is a dual non-inverting octal buffer with 3-state outputs from Nexperia, part of the 74LVTH family. It operates from 2.7V to 3.6V, optimized for 3.3V systems. The device features high drive capability with 32mA sink and 64mA source current, making it ideal for heavily loaded buses. Its 3-state outputs allow for bus sharing and isolation. Housed in a 20-SOIC package, it is suitable for memory interfacing, backplane applications, and industrial control systems.
- High Drive Current (32mA Sink / 64mA Source): Drives heavy capacitive loads and long traces with ease.
- 3.3V Optimized Operation: Ideal for modern low-voltage systems while maintaining TTL compatibility.
- 3-State Outputs: Enables efficient bus sharing and isolation in multi-device systems.
- Proven 20-SOIC Package: Easy to integrate into existing PCB designs.
High-Drive Bus Interfacing
With 32mA sink and 64mA source capability, the 74LVTH244AD,118 can drive heavily loaded buses in 3.3V systems.
Memory Address Buffering
Its high drive strength and 3-state outputs make it ideal for buffering address lines in DRAM and SRAM interfaces.
Backplane and Motherboard Applications
The 2.7V to 3.6V range and high current drive suit backplane signaling in servers and networking equipment.
Mixed 3.3V/5V Systems
While optimized for 3.3V, its TTL-compatible inputs allow interfacing with 5V logic in mixed-voltage environments.
Telecommunications Equipment
Reliable operation from -40°C to 85°C makes it suitable for telecom infrastructure requiring stable buffering.
Industrial Control Systems
Its robust drive and 3-state capability enable use in industrial PLCs and control modules for signal distribution.
- Q: What is the logic family of the 74LVTH244AD,118?
- A: It belongs to the 74LVTH (Low-Voltage TTL with Bus Hold) logic family.
- Q: What is the function of this IC?
- A: It is a dual non-inverting buffer with 3-state outputs.
- Q: How many channels does it have?
- A: It has 2 channels (octal buffer).
- Q: What is the output type?
- A: 3-State output for bus interfacing.
- Q: What is the operating voltage range?
- A: It operates from 2.7V to 3.6V.
- Q: What package is available?
- A: It comes in a 20-SOIC package.
