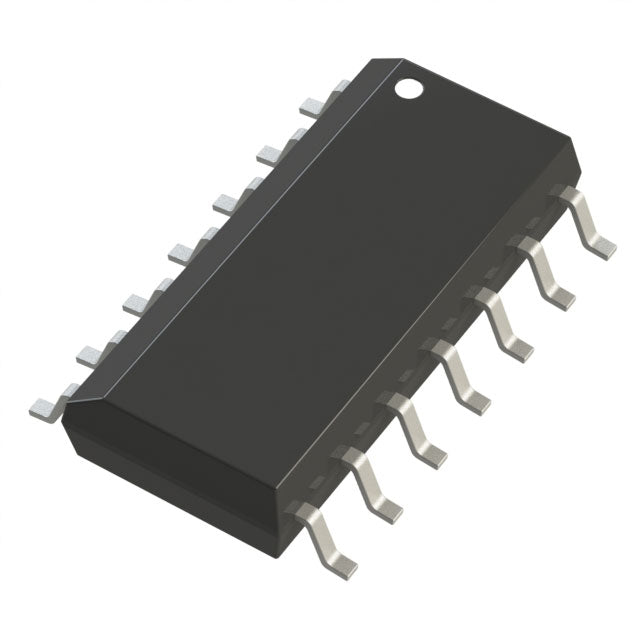

Nexperia USA Inc. 74VHC125D,118
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.48 | $0.48 |
| 15+ | $0.46 | $6.90 |
| 25+ | $0.45 | $11.25 |
| 50+ | $0.43 | $21.50 |
| 100+ | $0.38 | $38.00 |
| N+ | $0.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nexperia USA Inc. |
| Product Series | 74VHC |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 4 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 8mA, 8mA |
| Voltage - Supply | 2V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SO |
The 74VHC125D from Nexperia is a quad-channel non-inverting buffer featuring 3-State outputs. It operates from 2V to 5.5V, making it suitable for both 3.3V and 5V logic systems. Each of the four channels can be independently enabled or disabled, providing flexible bus control. With 8mA drive current per channel and a temperature range of -40°C to 125°C, this buffer is ideal for automotive, industrial, and consumer applications requiring reliable signal buffering. The 14-SOIC package offers a compact solution for multi-channel designs.
- Quad-Channel Configuration: Buffers four signals in one package, saving board space and cost.
- Independent 3-State Control: Each channel can be individually enabled/disabled, offering maximum design flexibility.
- Wide 2V to 5.5V Supply: Compatible with 3.3V and 5V logic, simplifying mixed-voltage interfacing.
- Automotive Temperature Range (-40°C to 125°C): Suitable for harsh environments.
Multi-Channel Bus Buffering
With four independent buffers, this IC can buffer four separate data lines simultaneously, making it ideal for parallel bus systems like address or data buses.
Memory Address Line Driving
The 8mA drive current per channel ensures reliable driving of multiple memory chips, reducing loading effects and improving signal integrity.
Peripheral Interface Isolation
Each channel's 3-State output can be individually controlled, allowing selective connection/disconnection of peripherals from the main bus.
Level Shifting for Mixed-Voltage Systems
Operating from 2V to 5.5V, this buffer can interface between 3.3V and 5V logic, providing a simple level-shifting solution for multi-voltage designs.
Automotive Control Module Signal Distribution
With a temperature range of -40°C to 125°C, this buffer can distribute control signals to multiple actuators or sensors in automotive ECUs.
Industrial PLC I/O Expansion
The quad-channel configuration allows efficient buffering of multiple I/O signals in programmable logic controllers, reducing component count and board space.
- Q: What logic family is the 74VHC125D?
- A: It belongs to the 74VHC logic family, offering high-speed CMOS with low power dissipation.
- Q: What is the function of this IC?
- A: It is a quad-channel non-inverting buffer with 3-State output.
- Q: How many channels does it have?
- A: It has 4 channels.
- Q: What is the output type?
- A: The output is 3-State, allowing each channel to be independently disabled.
- Q: What is the voltage range?
- A: It operates from 2V to 5.5V, compatible with 3.3V and 5V systems.
- Q: What package is available?
- A: It comes in a 14-SOIC (3.90mm width) package.
