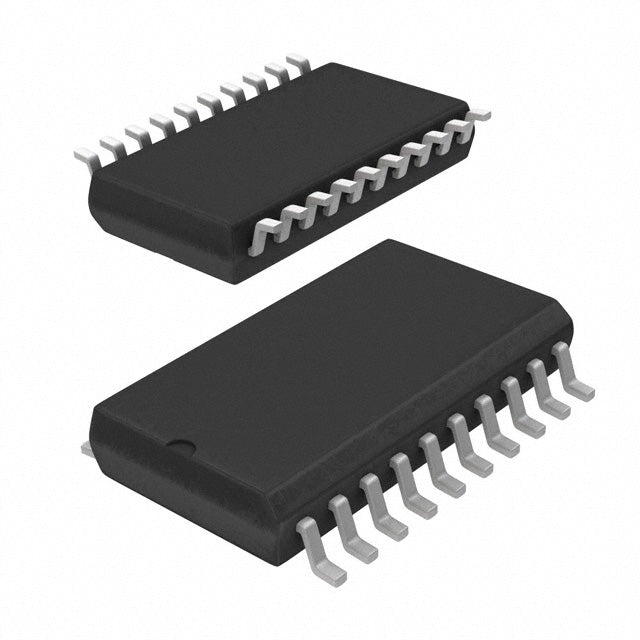

onsemi 74VHCT245AMX
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | 74VHCT |
| Packaging | | |
| Part Status | Obsolete |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 8mA, 8mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| ROHS |  |
The 74VHCT245AMX is a non-inverting transceiver from Fairchild Semiconductor, designed for bidirectional data transfer in 5V systems. It operates from 4.5V to 5.5V, ensuring TTL compatibility. The 3-State outputs allow for controlled bus access. With 8mA drive capability, it can reliably drive bus lines. Housed in a 20-SOIC package, it is ideal for applications requiring bidirectional buffering, such as data acquisition and memory interfacing.
- Bidirectional Data Flow: Enables flexible bus design with direction control.
- 5V TTL-Compatible: Works seamlessly with legacy TTL systems.
- 3-State Outputs: Allows multiple devices to share the bus safely.
- High-Speed 74VHCT Family: Provides fast propagation delays for high-performance systems.
Bidirectional Bus Communication
As a transceiver, it enables bidirectional data flow between two buses, controlled by a direction pin.
5V Data Acquisition Systems
It buffers data lines between sensors, ADCs, and microcontrollers in 5V industrial systems.
Memory Read/Write Interfacing
It facilitates data transfer between a microprocessor and memory, switching direction for read and write operations.
TTL-to-CMOS Level Conversion
It can interface between TTL and CMOS logic, translating signal levels while maintaining speed.
Telecommunications Equipment
It is used in telecom line cards for buffering and routing data between different modules.
Automotive Electronics
Its robust 5V operation makes it suitable for automotive control units and sensor interfaces.
- Q: What logic family does the 74VHCT245AMX belong to?
- A: It belongs to the 74VHCT logic family, which is a high-speed, TTL-compatible CMOS family.
- Q: What is the function of this IC?
- A: It is a Transceiver with Non-Inverting outputs, allowing bidirectional data flow.
- Q: How many channels does it have?
- A: It features 1 channel, but in a 20-pin package, it typically contains 8 bidirectional transceiver gates.
- Q: What is the output type?
- A: The outputs are 3-State, enabling bidirectional bus communication with high-impedance control.
- Q: What is the operating voltage?
- A: It operates at 5V (4.5V to 5.5V), making it compatible with TTL logic levels.
- Q: What package is available?
- A: It comes in a 20-SOIC (0.295", 7.50mm Width) package.
