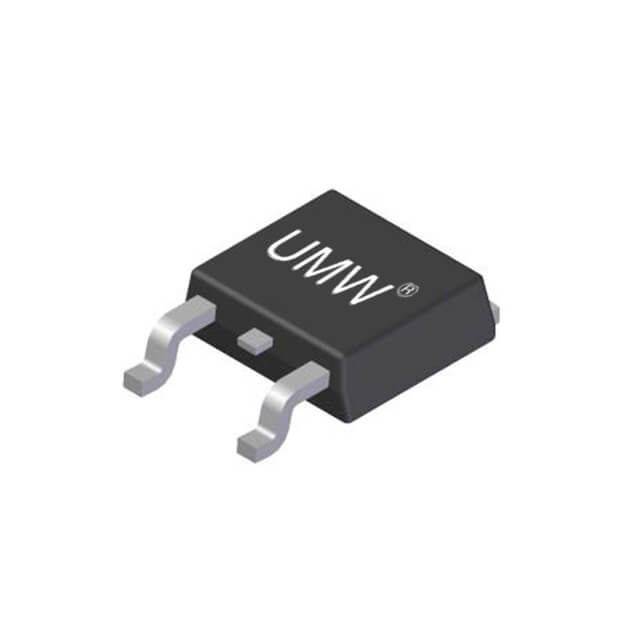

UMW 78M05A
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.39 | $0.39 |
| 15+ | $0.51 | $7.65 |
| 25+ | $0.50 | $12.50 |
| 50+ | $0.47 | $23.50 |
| 100+ | $0.41 | $41.00 |
| N+ | $0.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | UMW |
| Product Series | |
| Packaging | Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 2V @ 350mA |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 6 mA |
| Current - Supply (Max) | - |
| PSRR | 80dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -20°C ~ 85°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252 (DPAK) |
| ROHS |  |
The 78M05A is a fixed 5V linear voltage regulator delivering up to 500mA of output current. Packaged in a TO-252 (DPAK), it features a dropout voltage of 2V at 500mA and a quiescent current of 6 mA. With an 80dB power supply rejection ratio at 120Hz, it provides excellent filtering of AC ripple, making it ideal for consumer electronics, automotive modules, and battery-powered devices.
- High Ripple Rejection: 80dB PSRR at 120Hz ensures a clean, stable output for sensitive electronics.
- Compact TO-252 Package: Surface-mount design saves PCB space while providing adequate thermal dissipation.
- Low Quiescent Current: 6 mA quiescent current enhances efficiency in battery-operated applications.
- Reliable Protection: Built-in thermal shutdown and safe-area protection safeguard the regulator and load.
Consumer Electronics Power Rails
Provides a stable 5V supply for set-top boxes, routers, and smart home hubs, with 500mA capacity for SoCs and peripherals, and 80dB PSRR at 120Hz for clean operation.
LED Lighting Control Boards
Regulates 5V for LED driver logic and dimming circuits, where the low quiescent current (6 mA) minimizes standby power consumption.
Automotive Body Electronics
Powers 5V logic in window lift controllers and mirror adjustment modules, with TO-252 package suitable for compact PCB layouts in confined spaces.
Battery-Powered Instruments
Converts battery voltage to a stable 5V for handheld multimeters and portable sensors, leveraging the low dropout to extend battery life.
White Goods Control Units
Supplies 5V to microcontrollers in refrigerators and dishwashers, offering reliable regulation with thermal overload protection.
Telecom Interface Modules
Provides a regulated 5V rail for RS-232 transceivers and Ethernet PHYs, with high ripple rejection ensuring error-free data transmission.
- Q: What is the output voltage of the 78M05A?
- A: The 78M05A provides a fixed 5V output.
- Q: What is the maximum output current?
- A: It can deliver up to 500mA of output current.
- Q: What is the input voltage range?
- A: The input voltage must be at least 5V plus the dropout voltage (2V @ 500mA), so typically 7V or higher.
- Q: What is the dropout voltage?
- A: The dropout voltage is 2V at 500mA load current.
- Q: What is the quiescent current?
- A: The quiescent current is 6 mA.
- Q: What package is available?
- A: The 78M05A is available in the TO-252 (DPAK) package.
