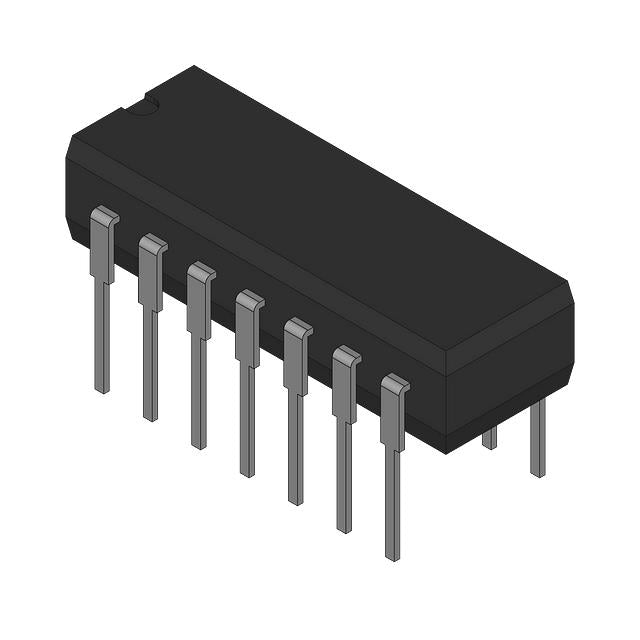

Texas Instruments 8512601CA
Regular price
$64.40
Regular price
$16.10
Sale price
$64.40
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $64.40 | $64.40 |
| 15+ | $14.81 | $222.15 |
| 25+ | $14.49 | $362.25 |
| 50+ | $13.69 | $684.50 |
| 100+ | $12.08 | $1,208.00 |
| N+ | $2.42 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 54LS |
| Packaging | Bulk | |
| Logic Type | NOR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Open Collector |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 13.8 mA |
| Current - Output High, Low | 250µA, 12mA |
| Input Logic Level - Low | 0.7V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 32ns @ 5V, 45pF |
| Operating Temperature | -55°C ~ 125°C |
| Grade | Military |
| Qualification | MIL-PRF-38535 |
| Mounting Type | Through Hole |
| Package / Case | 14-CDIP |
| Supplier Device Package | 14-CDIP (0.300", 7.62mm) |
8512601CA.pdf
×
