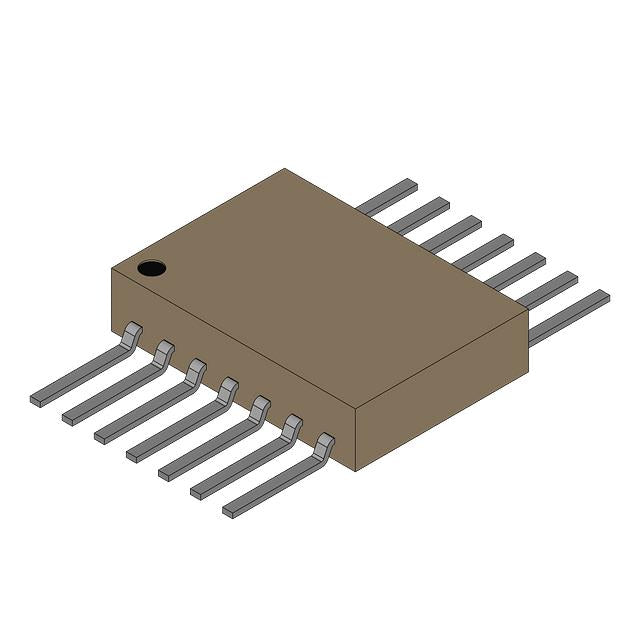

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $8.22
Regular price $8.65 Sale price $8.22
Sale Sold out
Quantity Unit Price Total Price
1 $8.22 $8.22
15+ $7.96 $119.40
25+ $7.79 $194.75
50+ $7.35 $367.50
100+ $6.49 $649.00
N+ $1.30 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer National Semiconductor
Product Series 9XXX
Packaging Bulk |
Part Status Active
Logic Type AND/OR/INVERT Gate
Number of Circuits 2
Number of Inputs 8 Input (4, 4)
Schmitt Trigger Input No
Output Type Single-Ended
Current - Output High, Low 16mA, -
Voltage - Supply 4.5V ~ 5.5V
Operating Temperature -55°C ~ 125°C
Grade -
Qualification -
Mounting Type Surface Mount
Package / Case 14-CFlatPack
Supplier Device Package 14-CFP
