Microsemi Corporation A2F060M3E-FG256
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 66.95 | Dhs. 66.95 |
| 15+ | Dhs. 64.83 | Dhs. 972.45 |
| 25+ | Dhs. 63.42 | Dhs. 1,585.50 |
| 50+ | Dhs. 59.90 | Dhs. 2,995.00 |
| 100+ | Dhs. 52.85 | Dhs. 5,285.00 |
| N+ | Dhs. 10.57 | Price Inquiry |
Request Quote / Inquiry

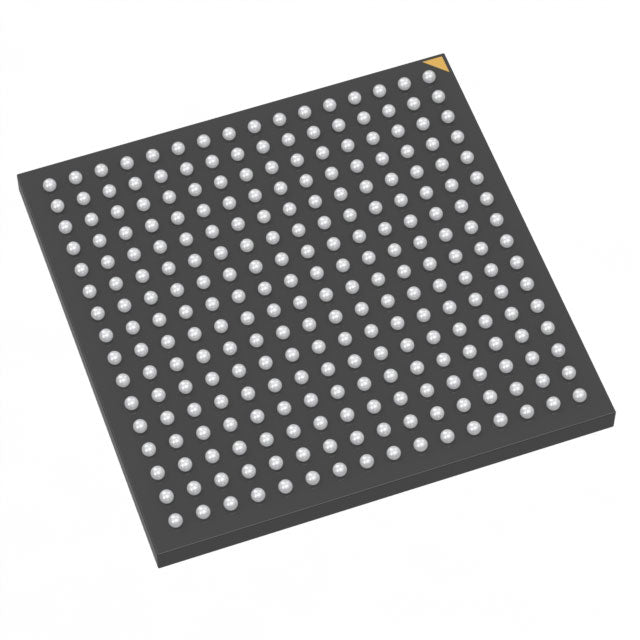

Microsemi A2F060M3E-FG256 SmartFusion® System-on-Chip (SoC)
The A2F060M3E-FG256 is a highly integrated SmartFusion® SoC from Microsemi Corporation that combines an ARM® Cortex®-M3 microcontroller with a ProASIC®3 FPGA fabric, delivering programmable logic and embedded processing in a single device. Ideal for industrial, automotive, aerospace, and communications applications requiring flexible, low-power embedded control with FPGA acceleration.
Key Features
- Dual Architecture: ARM Cortex-M3 MCU + 60K-gate ProASIC3 FPGA with 1,536 D-flip-flops
- High Performance: 80MHz processor speed for real-time control and signal processing
- Memory: 128KB embedded Flash and 16KB SRAM for program and data storage
- Rich Connectivity: EBI/EMI, I²C, SPI, UART/USART interfaces for versatile system integration
- Integrated Peripherals: DMA, Power-On Reset (POR), Watchdog Timer (WDT)
- Industrial Grade: Operating temperature range 0°C to 85°C (junction)
- Compact Package: 256-pin Fine-Pitch BGA (17×17mm) for space-constrained designs
Applications
Perfect for motor control, industrial automation, embedded vision, communications infrastructure, and mixed-signal processing where programmable logic and microcontroller functionality are both required.
Note: This part is marked as obsolete. Please verify availability and consider newer SmartFusion2 or IGLOO2 alternatives for new designs. Contact us for cross-reference support and lifecycle information.
| Product attributes | Property Value |
| Manufacturer | Microsemi Corporation |
| Product Series | SmartFusion® |
| Packaging | Tray | |
| Part Status | Obsolete |
| Architecture | MCU, FPGA |
| Core Processor | ARM® Cortex®-M3 |
| Flash Size | 128KB |
| RAM Size | 16KB |
| Peripherals | DMA, POR, WDT |
| Connectivity | EBI/EMI, I2C, SPI, UART/USART |
| Speed | 80MHz |
| Primary Attributes | ProASIC®3 FPGA, 60K Gates, 1536D-Flip-Flops |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Grade | - |
| Qualification | - |
| Package / Case | 256-LBGA |
| Supplier Device Package | 256-FPBGA (17x17) |
A2F060M3E-FG256.pdf
