Microsemi Corporation A2F060M3E-TQG144I

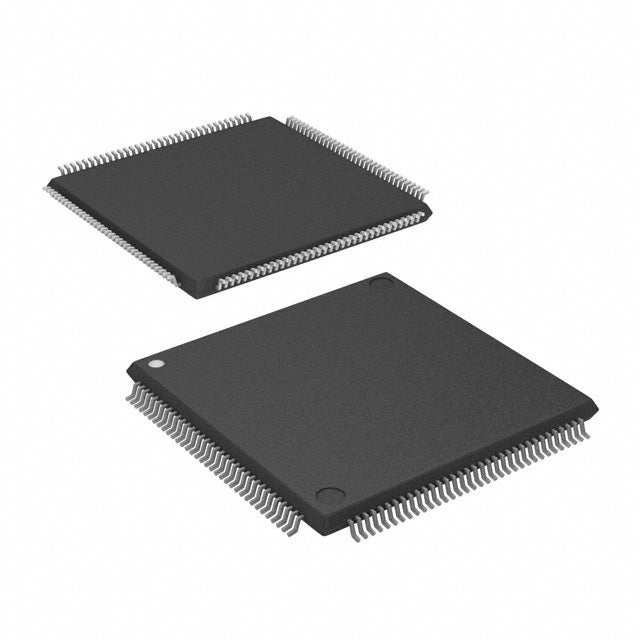

Microsemi A2F060M3E-TQG144I SmartFusion® System-on-Chip (SoC)

The A2F060M3E-TQG144I is a high-performance SmartFusion® programmable system-on-chip (SoC) from Microsemi Corporation, combining an ARM® Cortex®-M3 microcontroller with ProASIC®3 FPGA fabric. This integrated solution delivers 80MHz processing speed with 60K gates of programmable logic, making it ideal for aerospace, industrial control, medical devices, and secure embedded applications.

Key Features & Benefits

• Integrated ARM Cortex-M3 Core: 80MHz processing with 128KB Flash and 16KB RAM for robust embedded applications
• ProASIC®3 FPGA Fabric: 60K gates with 1,536 D-flip-flops for custom logic implementation
• Rich Peripheral Set: DMA, POR, WDT, I2C, SPI, UART/USART, and EBI/EMI connectivity
• Industrial Temperature Range: -40°C to 100°C (TJ) for harsh environment deployment
• Compact 144-TQFP Package: 20x20mm footprint for space-constrained designs

Applications

Perfect for industrial automation, motor control, secure communications, medical instrumentation, and aerospace systems requiring both microcontroller functionality and FPGA flexibility in a single chip.

Documentation & Support

Full datasheets, reference designs, and technical documentation available. Contact our engineering team for design-in support, sample requests, and volume pricing.

• A2F060M3E-TQG144I.pdf
