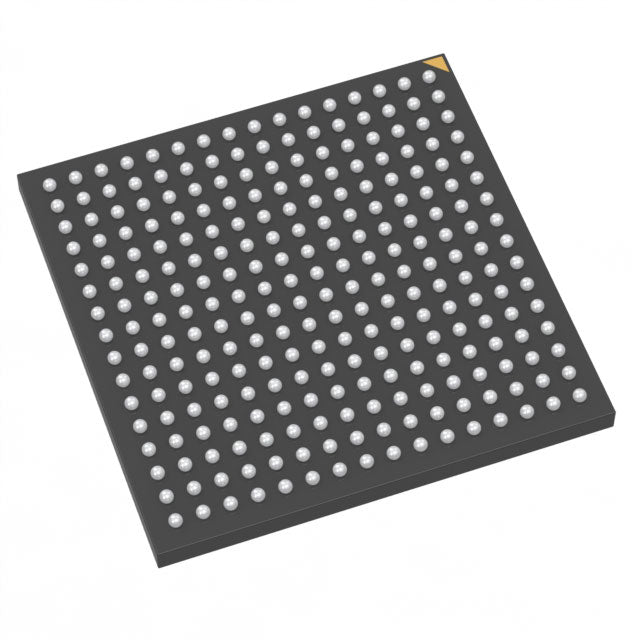

Microchip Technology A2F500M3G-FG256
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 256.45 | Dhs. 256.45 |
| 15+ | Dhs. 248.34 | Dhs. 3,725.10 |
| 25+ | Dhs. 242.95 | Dhs. 6,073.75 |
| 50+ | Dhs. 229.45 | Dhs. 11,472.50 |
| 100+ | Dhs. 202.46 | Dhs. 20,246.00 |
| N+ | Dhs. 40.49 | Price Inquiry |
Request Quote / Inquiry
Microchip A2F500M3G-FG256 SmartFusion® Customizable System-on-Chip (cSoC)
The A2F500M3G-FG256 from Microchip Technology represents the SmartFusion® family's advanced integration of a hard ARM® Cortex®-M3 microcontroller subsystem with ProASIC®3 FPGA fabric on a single chip. This customizable System-on-Chip (cSoC) delivers exceptional flexibility for embedded applications requiring both deterministic processing and programmable logic.
Key Features & Benefits
- Dual Architecture: ARM Cortex-M3 MCU core running at 80MHz combined with 500K-gate ProASIC3 FPGA fabric (11,520 D-Flip-Flops)
- Generous Memory: 512KB embedded Flash and 64KB SRAM for application code and data storage
- Rich Connectivity: Integrated Ethernet MAC, UART/USART, SPI, I²C, and EBI/EMI interfaces
- Advanced Peripherals: DMA controller, Power-On Reset (POR), and Watchdog Timer (WDT)
- Industrial Temperature Range: Qualified for 0°C to 85°C (TJ) operation
- Compact Package: 256-pin Fine-Pitch BGA (17mm × 17mm) for space-constrained designs
Ideal Applications
Perfect for industrial control systems, motor control, communications infrastructure, medical devices, and any application requiring the deterministic performance of an MCU with the flexibility of programmable logic. The SmartFusion architecture enables system consolidation, reducing BOM cost and board space while improving reliability.
Design Support
Comprehensive development ecosystem including Libero® SoC design suite, SoftConsole IDE, and extensive reference designs. Full traceability and compliance documentation available for aerospace, automotive, and medical applications.
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SmartFusion® |
| Packaging | Tray | |
| Part Status | Active |
| Architecture | MCU, FPGA |
| Core Processor | ARM® Cortex®-M3 |
| Flash Size | 512KB |
| RAM Size | 64KB |
| Peripherals | DMA, POR, WDT |
| Connectivity | EBI/EMI, Ethernet, I2C, SPI, UART/USART |
| Speed | 80MHz |
| Primary Attributes | ProASIC®3 FPGA, 500K Gates, 11520 D-Flip-Flops |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Grade | - |
| Qualification | - |
| Package / Case | 256-LBGA |
| Supplier Device Package | 256-FPBGA (17x17) |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
