Microchip Technology A42MX09-3PQ160
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,870.06 | Dhs. 355,870.06 |
| 15+ | Dhs. 344,632.06 | Dhs. 5,169,480.90 |
| 25+ | Dhs. 337,140.05 | Dhs. 8,428,501.25 |
| 50+ | Dhs. 318,410.05 | Dhs. 15,920,502.50 |
| 100+ | Dhs. 280,950.05 | Dhs. 28,095,005.00 |
| N+ | Dhs. 56,190.01 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | MX |
| Packaging | | Tray |
| Number of LABs/CLBs | - |
| Number of Logic Elements/Cells | - |
| Total RAM Bits | - |
| Number of I/O | 101 |
| Number of Gates | 14000 |
| Voltage - Supply | 3V ~ 3.6V, 4.75V ~ 5.25V |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Package / Case | 160-BQFP |
| Supplier Device Package | 160-PQFP (28x28) |

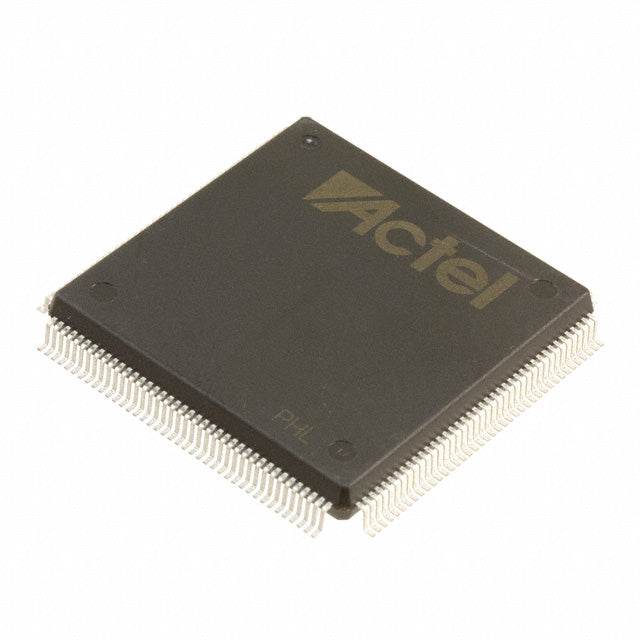

A42MX09-3PQ160 Field Programmable Gate Array Overview
The A42MX09-3PQ160 is a high-performance Field Programmable Gate Array (FPGA) from Microchip Technology's MX series, engineered for demanding applications in aerospace, automotive, industrial, medical, and telecommunications sectors. This FPGA delivers 14,000 gates with 101 I/O pins in a compact 160-PQFP surface mount package, providing exceptional design flexibility and reliable performance across extended operating conditions.
Key Features & Benefits
- 14,000 Gate Capacity: Ample logic resources for complex digital designs and signal processing applications
- 101 I/O Pins: Extensive connectivity options for interfacing with multiple peripherals and subsystems
- Dual Voltage Support: Flexible power supply options (3V-3.6V and 4.75V-5.25V) for diverse system architectures
- 160-PQFP Package: Space-efficient 28x28mm surface mount footprint ideal for high-density PCB layouts
- Commercial Temperature Range: Reliable operation from 0°C to 70°C for standard industrial environments
- Long Lifecycle Availability: Backed by Microchip's commitment to extended product support and full traceability
Applications & Use Cases
The A42MX09-3PQ160 FPGA is ideally suited for:
- Digital signal processing and data acquisition systems
- Industrial automation and control logic implementation
- Communication protocol bridging and interface conversion
- Embedded system prototyping and custom logic integration
- Legacy system upgrades requiring programmable logic solutions
Quality & Compliance
All A42MX09-3PQ160 units are sourced through authorized channels with complete traceability documentation. Each component undergoes rigorous quality verification to ensure compliance with industry standards and long-term reliability for mission-critical applications.
Related Products & Resources
Explore our complete range of FPGAs Field Programmable Gate Array ICs for additional programmable logic solutions. Visit HQICKEY to browse our full catalog of semiconductors and programmable logic components. For technical insights, application notes, and industry updates, check out our News & Technical Blog.
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
