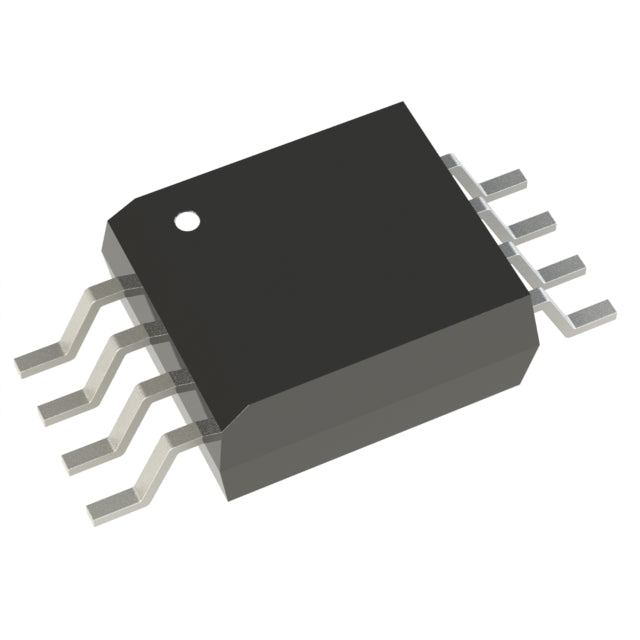

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Broadcom Limited
ACPL-C740-500E
ACPL-C740-500E
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 21.17 AED | Dhs. 21.17 AED |
| 15+ | Dhs. 20.51 AED | Dhs. 307.65 AED |
| 25+ | Dhs. 20.06 AED | Dhs. 501.50 AED |
| 50+ | Dhs. 18.95 AED | Dhs. 947.50 AED |
| 100+ | Dhs. 16.72 AED | Dhs. 1,672.00 AED |
| N+ | Dhs. 3.34 AED | Price Inquiry |
Couldn't load pickup availability
Apply for PCBA engineering assistance
ACPL-C740-500E - High-Precision 16-Bit Sigma-Delta Modulator
The ACPL-C740-500E from Broadcom Limited is a high-performance 16-bit sigma-delta modulator designed for precision analog-to-digital conversion in industrial, automotive, and medical applications. This single-channel modulator features a serial data interface and operates across a wide temperature range, making it ideal for demanding environments.
Key Features:
- 16-bit Resolution: Delivers exceptional precision for accurate signal measurement and conversion
- Wide Operating Temperature: -40°C to 110°C for reliable performance in harsh industrial conditions
- Flexible Power Supply: Supports both analog and digital voltage sources (±0.2V, 3V ~ 5.5V)
- Compact Surface Mount Package: 8-SOIC (6.81mm width) for space-efficient PCB designs
- RoHS Compliant: Meets environmental standards for global market compliance
- Serial Data Interface: Simplifies integration with microcontrollers and digital signal processors
Applications:
- Industrial automation and process control
- Precision measurement instrumentation
- Motor control and power monitoring
- Medical diagnostic equipment
- Automotive sensor interfaces
- Energy management systems
Complete Technical Specifications:
| Product attributes | Property Value |
| Manufacturer | Broadcom Limited |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Type | Modulator |
| Number of Channels | 1 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | - |
| Data Interface | Serial |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | ±0.2V, 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-SOIC (0.268", 6.81mm Width) |
| Supplier Device Package | 8-SO Stretched |
| ROHS |  |
Why Choose ACPL-C740-500E?
Broadcom's ACPL-C740-500E combines high-resolution analog-to-digital conversion with robust industrial-grade reliability. The 16-bit sigma-delta architecture ensures superior noise immunity and linearity, while the wide operating temperature range guarantees consistent performance in extreme conditions. With full RoHS compliance and availability in both cut tape and tape & reel packaging, this modulator is ready for high-volume production environments.
Datasheet & Technical Resources: Full technical documentation available from Broadcom to support your design-in process.
Datasheets:
ACPL-C740-500E
.pdf
