Qorvo ACT30BHT-1119
Regular price
Dhs. 0.52
Regular price
Dhs. 0.56
Sale price
Dhs. 0.52
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 0.52 | Dhs. 0.52 |
| 15+ | Dhs. 0.52 | Dhs. 7.80 |
| 25+ | Dhs. 0.50 | Dhs. 12.50 |
| 50+ | Dhs. 0.48 | Dhs. 24.00 |
| 100+ | Dhs. 0.42 | Dhs. 42.00 |
| N+ | Dhs. 0.08 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
Qorvo ACT30BHT-1119 Offline PWM Controller IC
The ACT30BHT-1119 from Qorvo's ActiveSwitcher™ series is a high-performance AC/DC offline PWM controller designed for flyback topology power supplies. This isolated controller IC delivers reliable power conversion with integrated current limiting and short circuit protection, making it ideal for industrial, telecom, and embedded power applications requiring long-term availability and proven reliability.
Key Features & Benefits
- Flyback Topology Support: Optimized for isolated flyback converter designs
- Wide Supply Range: Operates from 3.35V to 18V with 9.6V startup voltage
- 65kHz Switching Frequency: Enables compact transformer design while minimizing EMI
- 75% Maximum Duty Cycle: Provides design flexibility for various input/output configurations
- Integrated Protection: Built-in current limiting and short circuit protection enhance system robustness
- Extended Temperature Range: -40°C to 150°C junction temperature for harsh environments

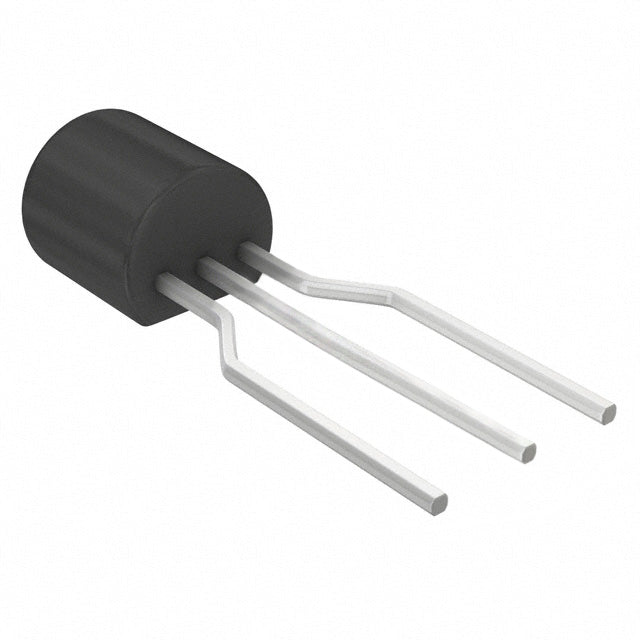

- Through-Hole Package: TO-92 package with formed leads for reliable PCB mounting
Applications
This controller IC is well-suited for aerospace, automotive, industrial automation, medical equipment, and telecommunications infrastructure where component longevity, traceability, and compliance with RoHS/REACH standards are critical.
| Product attributes | Property Value |
| Manufacturer | Qorvo |
| Product Series | ActiveSwitcher™ |
| Packaging | Tape & Box (TB) | Cut Tape (CT) |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 9.6 V |
| Voltage - Supply (Vcc/Vdd) | 3.35V ~ 18V |
| Duty Cycle | 75% |
| Frequency - Switching | 65kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Supplier Device Package | TO-92 |
ACT30BHT-1119.pdf
×
